SIL15C-05SADJ-VJ
RoHS
/
Package 11-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.9-3.3V 50W
PDF
/
Inventory: 4224
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 11-SIP Module
Number of Pins 11
Technical
Operating Temperature 0°C~80°C
Packaging Tray
Published 2005
Series SIL15C (75W)

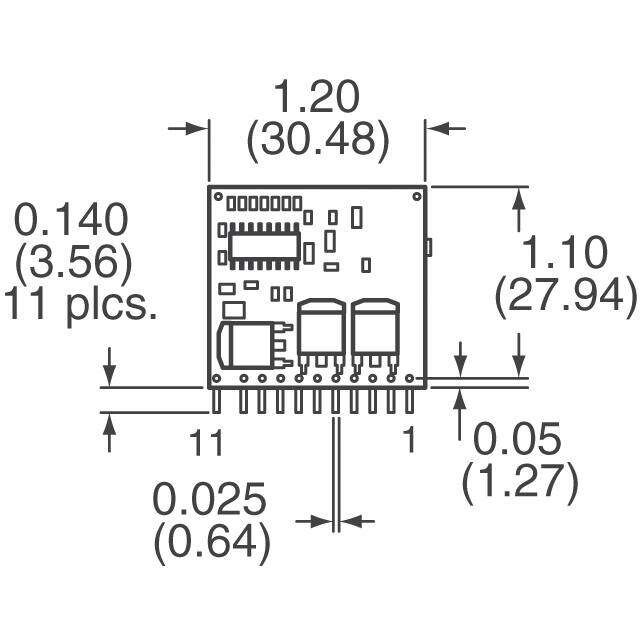

Size / Dimension 1.20Lx0.40W x 1.10 H 30.5mmx10.2mmx27.9mm
Feature Remote On/Off, OCP, SCP
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Non-Isolated PoL Module
Max Operating Temperature 80°C
Min Operating Temperature 0°C
Applications ITE (Commercial)
Power (Watts) 50W
Max Power Dissipation 50W
Number of Outputs 1
Efficiency 89%
Voltage - Input (Max) 5.5V
Output Voltage 3.3V
Max Output Current 15A
Voltage - Output 1 0.9V~3.3V
Voltage - Input (Min) 4.5V
Current - Output (Max) 15A
Output Current 15A
Output Power 50W
Min Input Voltage 4.5V
Max Input Voltage 5.5V
Current - Output 1 15A
Isolation Voltage 2.25kV
Dimensions
Height 27.94mm
Length 30.48mm
Width 10.16mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
