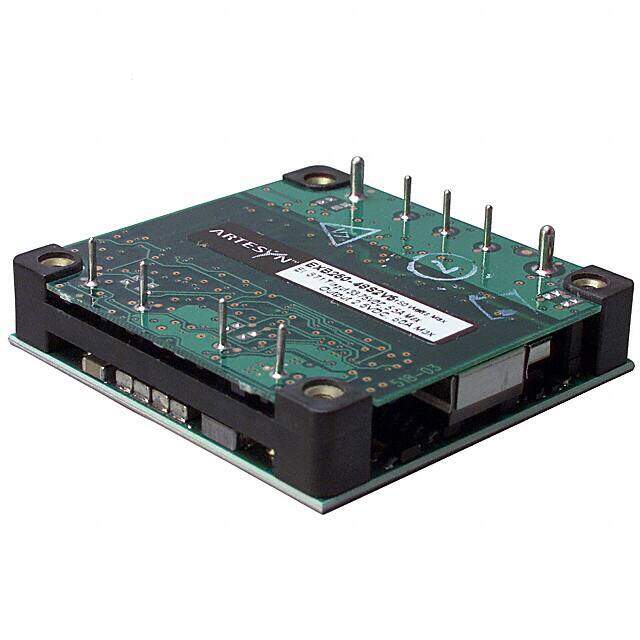

EXB250-48S3V3J
RoHS
/
Package 9-DIP Module, 1/2 Brick
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 3.3V 165W
PDF
/
Buying Options
Total Price: USD $334.35
Unit Price: USD $334.349679
≥1 USD $334.349679
≥200 USD $133.407708
≥500 USD $128.950412
≥1000 USD $126.747366
Inventory: 1900
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mounting Type Through Hole
Package / Case 9-DIP Module, 1/2 Brick
Surface Mount NO
Technical
Operating Temperature -40°C~100°C
Packaging Tray
Published 2005
Series EXB250 (165W)
Size / Dimension 2.40Lx2.28W x 0.50 H 61.0mmx57.9mmx12.7mm
Feature Remote On/Off, OCP, OVP, SCP, UVLO
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Reach Compliance Code unknown
Pin Count 9
JESD-30 Code R-XDMA-P9
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 90%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 75V
Output Voltage 3.3V
Voltage - Output 1 3.3V
Voltage - Input (Min) 33V
Input Voltage-Nom 48V
Trim/Adjustable Output YES
Current - Output (Max) 50A
Output Power 165W
Compliance
RoHS Status Non-RoHS Compliant
