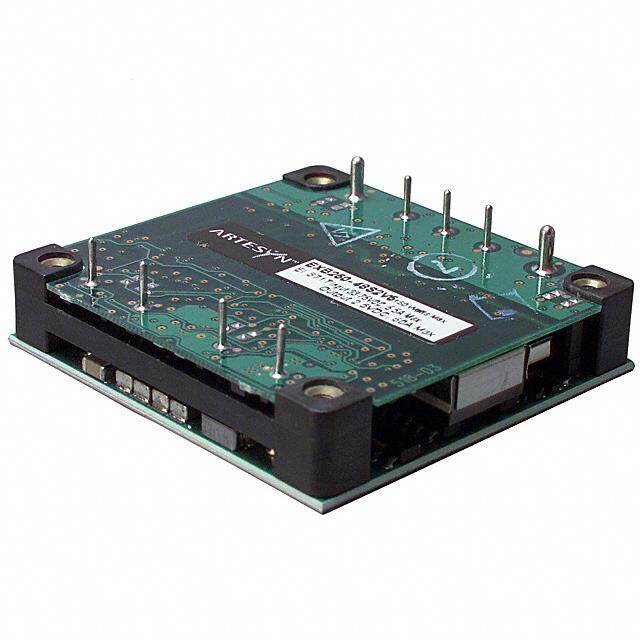

EXB250-48S05 image
Favorite
EXB250-48S05 image
Favorite
RoHS
/
Package 9-DIP Module, 1/2 Brick
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 5V 165W
PDF
/
Inventory: 7630
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mounting Type Through Hole
Package / Case 9-DIP Module, 1/2 Brick
Surface Mount NO

Technical

Operating Temperature -40°C~100°C
Published 2002
Series EXB250 (165W)
Size / Dimension 2.40Lx2.28W x 0.50 H 61.0mmx57.9mmx12.7mm
JESD-609 Code e0
Feature Remote On/Off, OCP, OVP, SCP, UVLO
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
ECCN Code EAR99
Type Isolated Module
Terminal Finish TIN LEAD
Applications ITE (Commercial)
Power (Watts) 165W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 9
JESD-30 Code R-XDMA-P9
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 91.7%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 75V
Output Voltage 5V
Voltage - Output 1 5V
Voltage - Input (Min) 33V
Input Voltage-Nom 48V
Trim/Adjustable Output YES
Current - Output (Max) 33A

Compliance

RoHS Status Non-RoHS Compliant
