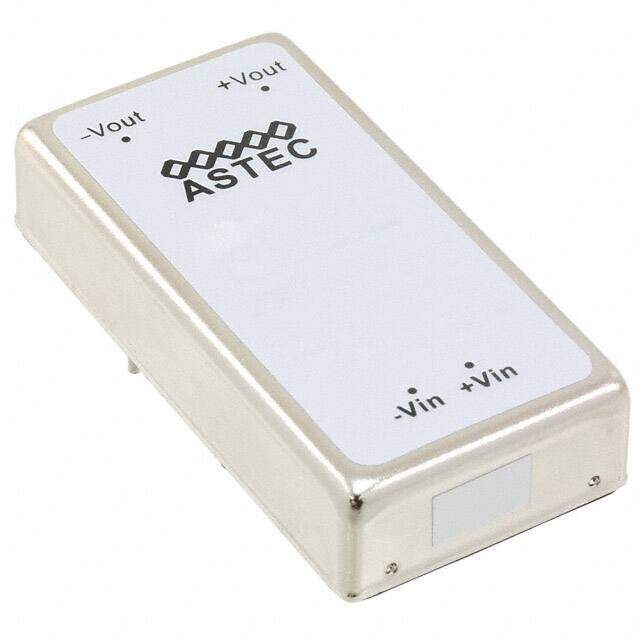

AEE04F18-LS image
Favorite
AEE04F18-LS image
Favorite
RoHS
RoHS RoHS compliant
Package 4-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 3.3V 15W
PDF
/
Buying Options
Total Price: USD $35.24
Unit Price: USD $35.244249
≥1 USD $35.244249
≥10 USD $33.249292
≥100 USD $31.367261
≥500 USD $29.591756
≥1000 USD $27.916743
Inventory: 1146
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Height 11.176mm

Technical

Nominal Input Voltage 18V
Current - Output 1 4A
Output Power 15W
Output Current 4A
Voltage - Input (Min) 9V
Voltage - Output 1 3.3V
Max Output Current 4A
Output Voltage 3.3V
Voltage - Input (Max) 36V
Voltage - Isolation 1.5kV
Efficiency 84%
Number of Outputs 1
Reach Compliance Code unknown
Depth 11.3mm
Max Power Dissipation 13W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 2.00Lx1.00W x 0.44 H 50.8mmx25.4mmx11.3mm
Series AEE (15W)
Published 2012
Packaging Tube
Operating Temperature -40°C~71°C

Physical

Number of Pins 4
Package / Case 4-DIP Module
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 10 Weeks
