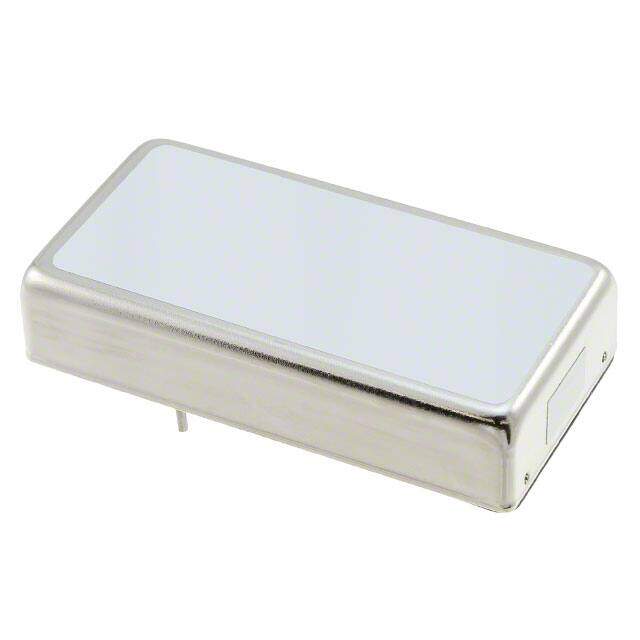

AEE01AA36-LS
RoHS
RoHS compliant
RoHS compliantPackage 5-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-5V 15W
PDF
/
Inventory: 7859
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height 11.176mm
Technical
Current - Output 2 1.5A
Current - Output 1 1.5A
Output Power 15W
Output Current 1.5A
Current - Output (Max) 1.5A 1.5A
Voltage - Input (Min) 18V
Voltage - Output 1 5V
Max Output Current 1.5A
Output Voltage -5V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 84%
Number of Outputs 2
Reach Compliance Code unknown
Depth 11.3mm
Max Power Dissipation 15W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 2.00Lx1.00W x 0.44 H 50.8mmx25.4mmx11.3mm
Series AEE (15W)
Published 2012
Packaging Tube
Operating Temperature -40°C~71°C
Physical
Number of Pins 5
Package / Case 5-DIP Module
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 10 Weeks
