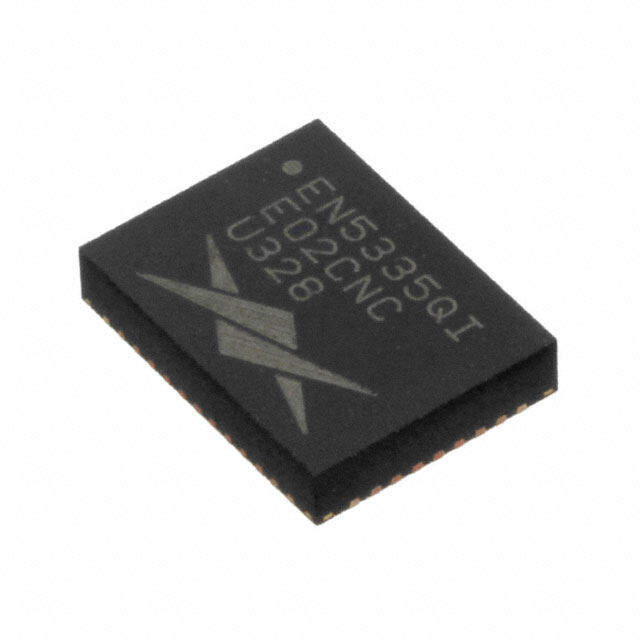

EN5335QI
RoHS
/
Package QFN
Category Power Supplies - Board Mount / DC DC Converters
Description
DC/DC CONVERTER 0.8-3.3V 10W
PDF
/
Buying Options
Total Price: USD $15.78
Unit Price: USD $15.78096
≥1 USD $15.78096
≥10 USD $14.8877
≥100 USD $14.045
≥500 USD $13.25
≥1000 USD $12.5
≥3000 USD $11.79245
Inventory: 7302
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 7.62mm
Length 9.906mm
Height 1.778mm
Technical
Max Output Power 10W
Switcher Configuration BUCK
Control Technique PULSE WIDTH MODULATION
Max Input Voltage 6.6V
Frequency - Switching 5MHz
Control Mode VOLTAGE-MODE
Min Input Voltage 2.375V
Voltage - Output 3.3V
Current - Output 3A
Power Dissipation-Max 10W
Analog IC - Other Type SWITCHING REGULATOR
Temperature Grade INDUSTRIAL
Input Voltage-Nom 5.5V
Voltage - Output 1 3.3V
Max Output Current 3A
Output Type Fixed
Efficiency 93 %
Number of Outputs 1
Pin Count 44
Time@Peak Reflow Temperature-Max (s) 10
Terminal Pitch 0.65mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position QUAD
Subcategory Switching Regulator or Controllers
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish MATTE TIN
ECCN Code EAR99
Number of Terminations 44
Moisture Sensitivity Level (MSL) 3
Part Status Active
Pbfree Code yes
Feature OCP, OTP, OVP, SCP, UVLO
JESD-609 Code e3
Published 2013
Physical
Weight 369.989626mg
Number of Pins 44
Package / Case QFN
Mount Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
