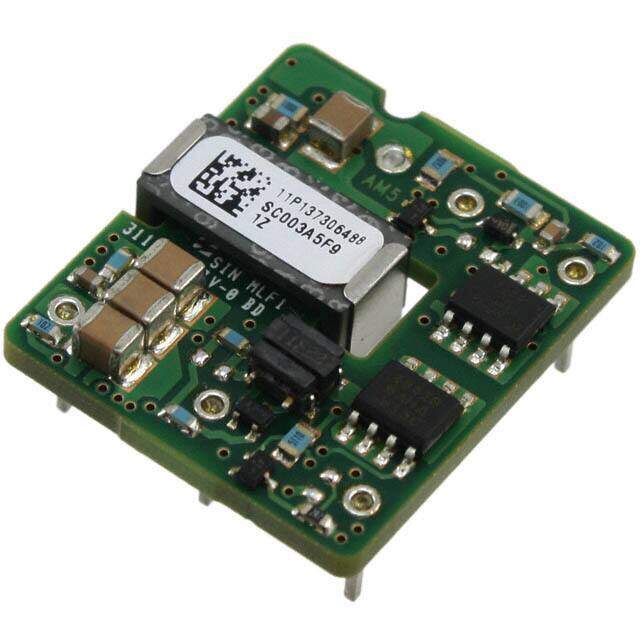

SC003A5F91Z image
Favorite
SC003A5F91Z image
Favorite
RoHS
/
Package 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 3.3V 12W
PDF
/
Inventory: 9641
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mounting Type Through Hole
Package / Case 6-DIP Module

Technical

Operating Temperature -40°C~85°C
Packaging Bulk
Series SC003
Size / Dimension 1.10Lx0.96W x 0.34 H 27.9mmx24.4mmx8.5mm
Feature Remote On/Off, OCP, OVP, UVLO
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 12W
Number of Outputs 1
Efficiency 85.5%
Voltage - Isolation 2.25kV
Voltage - Input (Max) 36V
Voltage - Output 1 3.3V
Voltage - Input (Min) 18V
Current - Output (Max) 3.5A
Control Features Enable, Active Low
