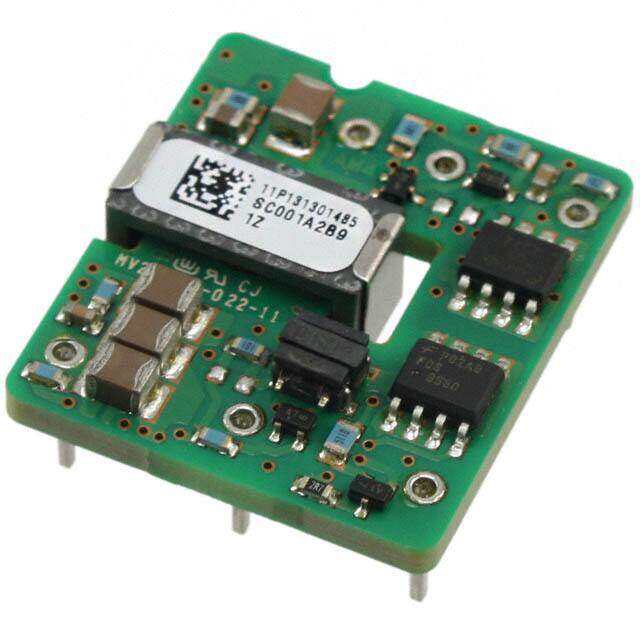

SC001A2B91Z
RoHS
/
Package 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 12V 15W
PDF
/
Inventory: 5858
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Control Features Enable, Active Low
Current - Output (Max) 1.2A
Voltage - Input (Min) 18V
Voltage - Output 1 12V
Voltage - Input (Max) 36V
Voltage - Isolation 2.25kV
Efficiency 85%
Number of Outputs 1
Power (Watts) 15W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Remote On/Off, OCP, OVP, UVLO
Size / Dimension 1.10Lx0.96W x 0.34 H 27.9mmx24.4mmx8.5mm
Series SC001
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Package / Case 6-DIP Module
Mounting Type Through Hole
