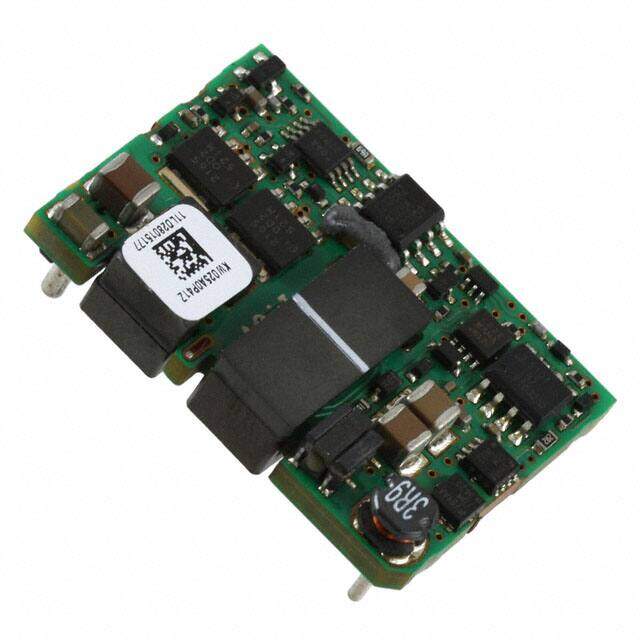

KW025A0P41Z image
Favorite
KW025A0P41Z image
Favorite
RoHS
/
Package 8-DIP Module, 1/16 Brick
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 1.2V 30W
PDF
/
Inventory: 9174
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Control Features Enable, Active Low
Current - Output (Max) 25A
Voltage - Input (Min) 36V
Voltage - Output 1 1.2V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 92%
Number of Outputs 1
Power (Watts) 30W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Remote On/Off, OCP, OTP, OVP, UVLO
Size / Dimension 1.30Lx0.90W x 0.34 H 33.0mmx22.9mmx8.5mm
Series KW025
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Package / Case 8-DIP Module, 1/16 Brick
Mounting Type Through Hole
