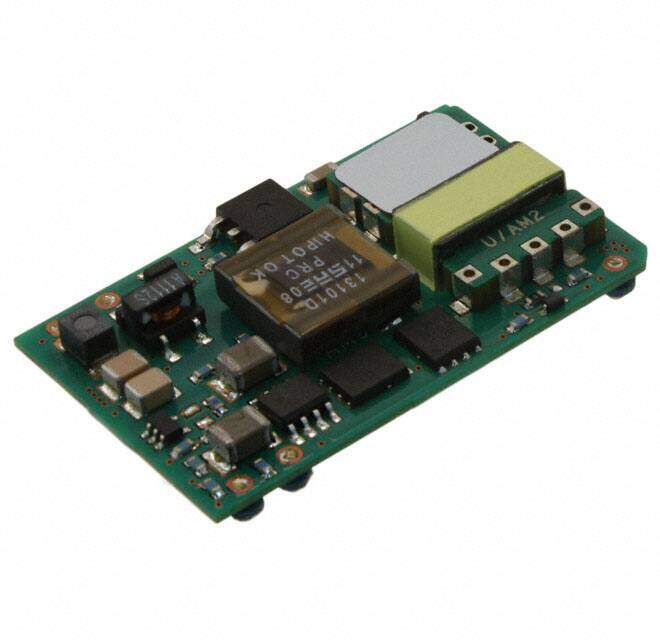

HW006A6A1-SZ
RoHS
/
Package 6-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V 30W
PDF
/
Inventory: 6716
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Control Features Enable, Active Low
Current - Output (Max) 6A
Voltage - Input (Min) 36V
Voltage - Output 1 5V
Voltage - Input (Max) 75V
Voltage - Isolation 2.25kV
Efficiency 91%
Number of Outputs 1
Power (Watts) 30W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Remote On/Off, OCP, OTP, OVP, UVLO
Size / Dimension 1.86Lx1.16W x 0.34 H 47.2mmx29.5mmx8.5mm
Series HW006
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Package / Case 6-SMD Module
Mounting Type Surface Mount
