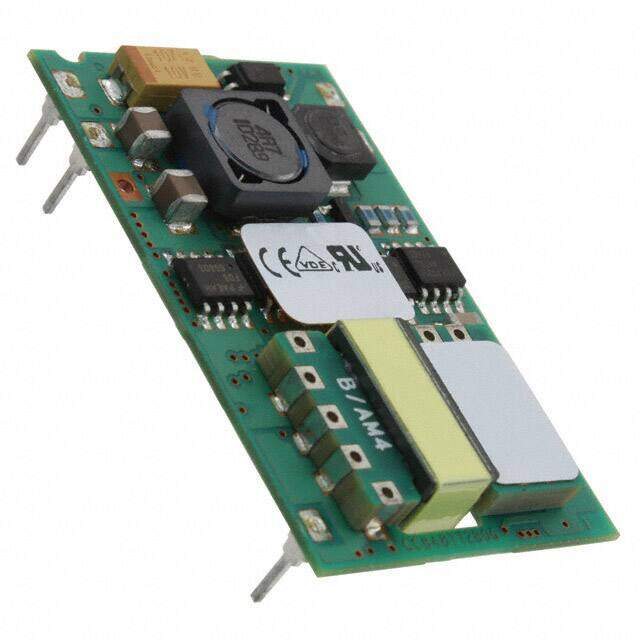

HW005A0F1Z
RoHS
/
Package 18-DIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 3.3V 16.5W
PDF
/
Inventory: 4768
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Through Hole
Package / Case 18-DIP Module, 6 Leads
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series HW005
Size / Dimension 1.86Lx1.16W x 0.34 H 47.2mmx29.5mmx8.5mm
Feature Remote On/Off, OCP, OTP, OVP, UVLO
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 16.5W
Number of Outputs 1
Efficiency 87%
Voltage - Isolation 2.25kV
Voltage - Input (Max) 75V
Voltage - Output 1 3.3V
Voltage - Input (Min) 36V
Current - Output (Max) 5A
Control Features Enable, Active Low
