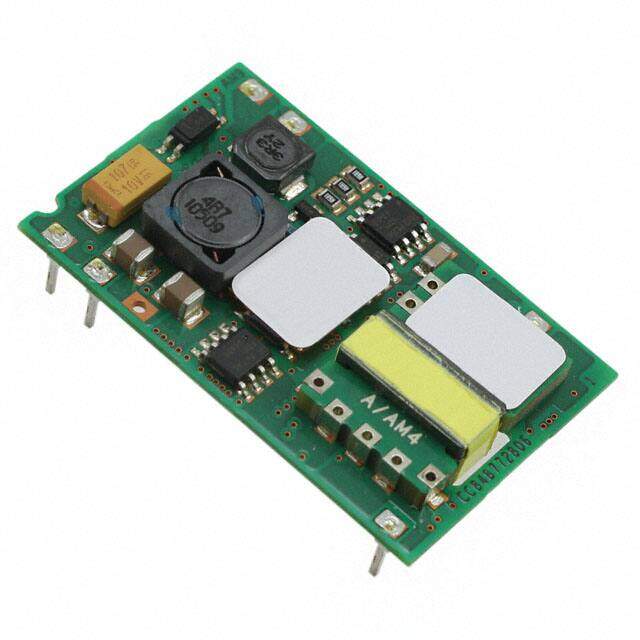

HW004A0A1Z
RoHS
/
Package 18-DIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V 20W
PDF
/
Inventory: 976
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Control Features Enable, Active Low
Current - Output (Max) 4A
Voltage - Input (Min) 36V
Voltage - Output 1 5V
Voltage - Input (Max) 75V
Voltage - Isolation 2.25kV
Efficiency 89%
Number of Outputs 1
Power (Watts) 20W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Part Status Obsolete
Feature Remote On/Off, OCP, OTP, OVP, UVLO
Size / Dimension 1.86Lx1.16W x 0.34 H 47.2mmx29.5mmx8.5mm
Series HW004
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Package / Case 18-DIP Module, 6 Leads
Mounting Type Through Hole
