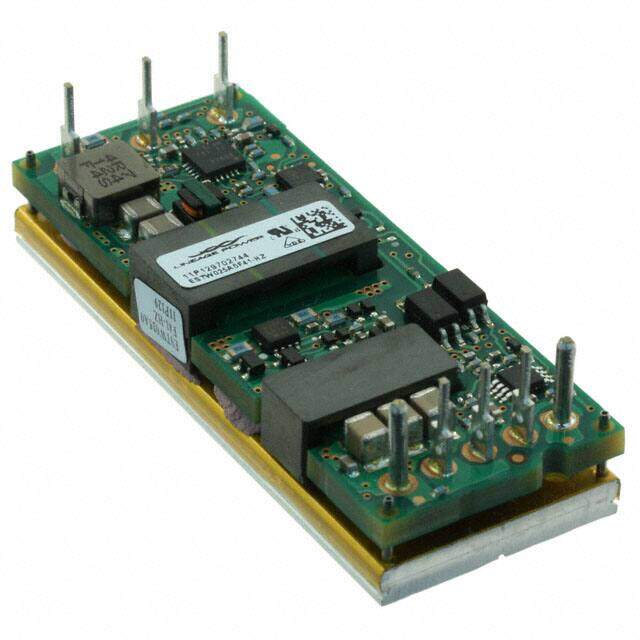

ESTW025A0F641-HZ
RoHS
/
Package 8-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 3.3V 83W
PDF
/
Inventory: 4737
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Control Features Enable, Active Low
Current - Output (Max) 25A
Voltage - Input (Min) 36V
Voltage - Output 1 3.3V
Voltage - Input (Max) 75V
Voltage - Isolation 2.25kV
Efficiency 92%
Number of Outputs 1
Power (Watts) 83W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Remote On/Off, OCP, OTP, OVP, UVLO
Size / Dimension 2.28Lx0.90W x 0.30 H 57.9mmx22.8mmx7.6mm
Series STINGRAY? ESTW025A0F
Packaging Tray
Operating Temperature -40°C~110°C
Physical
Package / Case 8-DIP Module
Mounting Type Through Hole
