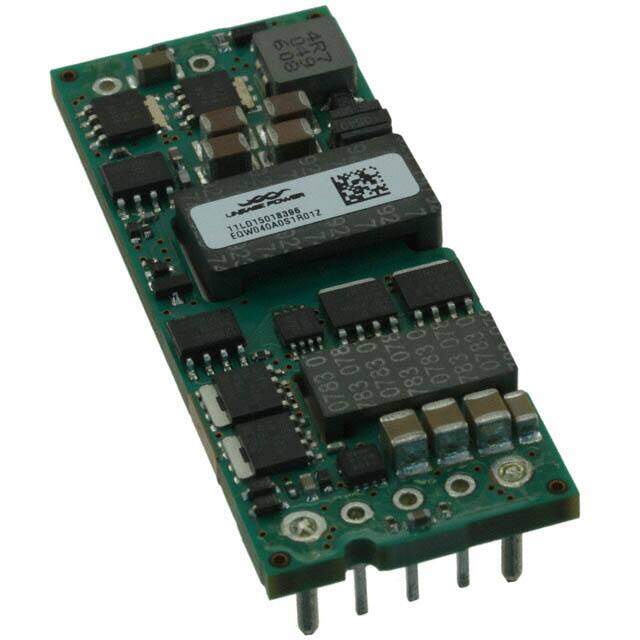

EQW040A0S1R01Z
RoHS
/
Package 8-DIP Module, 1/8 Brick
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 1-12V 40W
PDF
/
Inventory: 1643
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Control Features Enable, Active Low
Current - Output (Max) 40A
Voltage - Input (Min) 36V
Voltage - Output 1 1V~12V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 83.2%
Number of Outputs 1
Power (Watts) 40W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Remote On/Off, OCP, OTP, OVP, UVLO
Size / Dimension 2.28Lx0.90W x 0.34 H 57.9mmx22.8mmx8.5mm
Series EQW040
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Package / Case 8-DIP Module, 1/8 Brick
Mounting Type Through Hole
