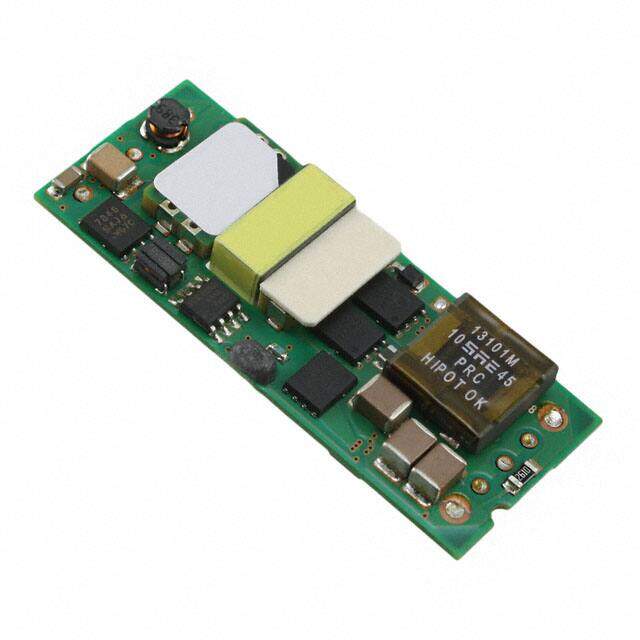

EQW012A0A1-SZ
RoHS
/
Package 8-SMD Module, 1/8 Brick
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V 60W
PDF
/
Inventory: 6646
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 8-SMD Module, 1/8 Brick
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series EQW012
Size / Dimension 2.28Lx0.90W x 0.34 H 57.9mmx22.8mmx8.5mm
Feature Remote On/Off, OCP, OTP, OVP, UVLO
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2 (1 Year)
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 60W
Number of Outputs 1
Efficiency 91%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 75V
Voltage - Output 1 5V
Voltage - Input (Min) 36V
Current - Output (Max) 12A
Control Features Enable, Active Low
