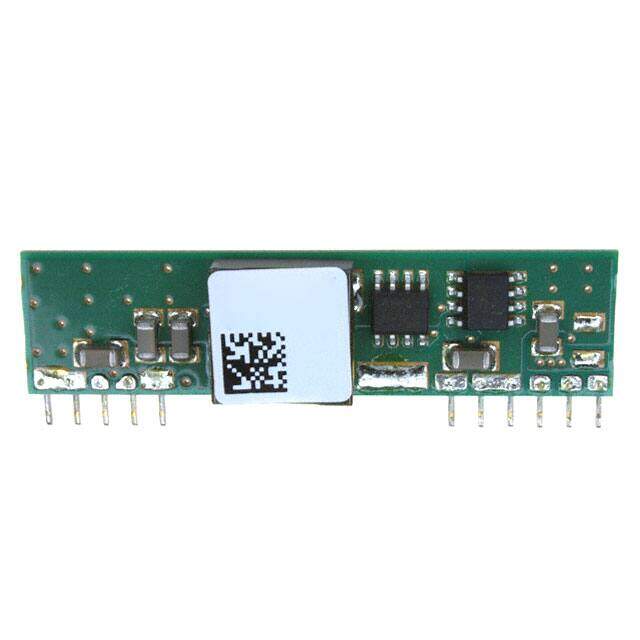

ATH010A0X3Z
RoHS
RoHS compliant
RoHS compliantPackage 11-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.8-3.6V 36W
PDF
/
Buying Options
Total Price: USD $167.35
Unit Price: USD $167.3539
≥1 USD $167.3539
≥10 USD $150.04205
Inventory: 1008
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Control Features Enable, Active Low
Current - Output (Max) 10A
Voltage - Input (Min) 2.4V
Voltage - Output 1 0.8V~3.6V
Voltage - Input (Max) 5.5V
Efficiency 95%
Number of Outputs 1
Power (Watts) 36W
Applications ITE (Commercial)
Type Non-Isolated PoL Module
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Part Status Obsolete
Feature Remote On/Off, OCP, OTP, UVLO
Size / Dimension 2.00Lx0.32W x 0.50 H 50.8mmx8.1mmx12.7mm
Series Austin Lynx? II
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Package / Case 11-SIP Module
Mounting Type Through Hole
