THB1248B-AXHG
RoHS
RoHS compliant
RoHS compliantPackage /
Category Fans, Thermal Management / DC Brushless Fans (BLDC)
Description
FAN AXIAL 120X25.4MM 48VDC WIRE
PDF
/
Inventory: 2524
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 25.40mm
Technical
Static Pressure 0.962 in H2O (239.7 Pa)
Voltage Range 36V~75VDC
Noise 59.0 dB(A)
Air Flow 186.6 CFM (5.22m3/min)
Fan Type Tubeaxial
Bearing Type Ball
RPM 5300 RPM
Lifetime @ Temp 70000 Hrs @ 40°C
Approval Agency CE, cURus, TUV
Ingress Protection IP54 - Dust Protected, Water Resistant
Current Rating (Amps) 0.400A
Voltage - Rated 48VDC
Power (Watts) 19.2W
Termination 4 Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Size / Dimension Square - 120mm Lx120mm H
Series THB
Published 2012
Operating Temperature 14~158°F -10°C~70°C
Physical
Material - Blade Plastic
Material - Frame Plastic
Supply Chain
Factory Lead Time 19 Weeks

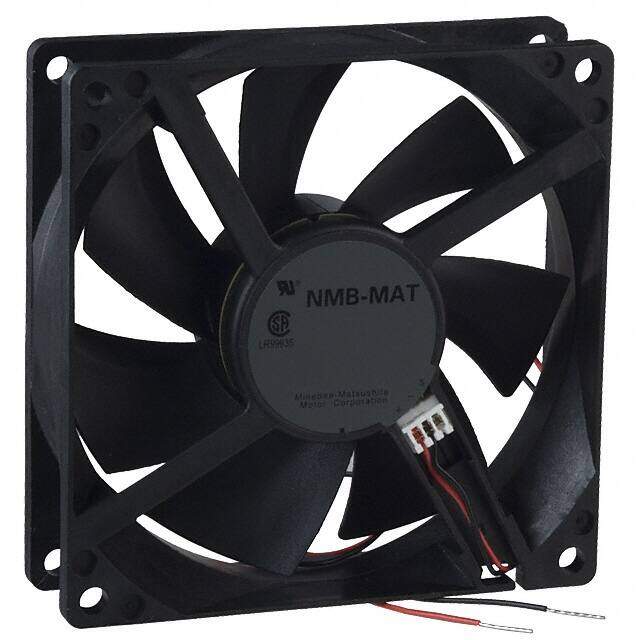

Alternative Model
