THB0648BE
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Fans, Thermal Management / DC Brushless Fans (BLDC)
Description

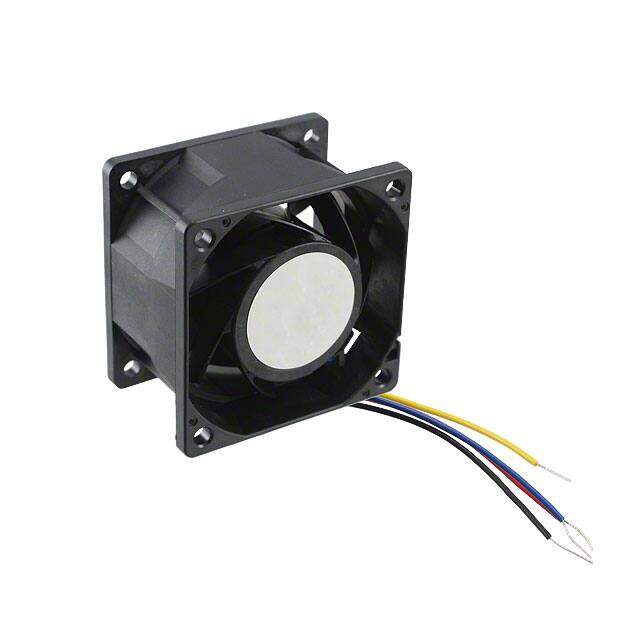

FAN AXIAL 60X38MM 48VDC WIRE
PDF
/
Buying Options
Total Price: USD $26.26
Unit Price: USD $26.255845
≥1 USD $26.255845
≥10 USD $24.769667
≥100 USD $23.36761
≥500 USD $22.044918
≥1000 USD $20.79709
Inventory: 3632
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Mount Flanges
Package / Case Axial
Weight 0.286lb 129.73g
Material - Frame Plastic
Technical
Published 2010
Series THB
Size / Dimension Square - 60mm Lx60mm H
Feature Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination 4 Wire Leads
Voltage - Rated 48VDC
Power Rating 16.32W
Current Rating (Amps) 0.340A
Max Power Dissipation 16.3W
Reach Compliance Code unknown
Current Rating 340mA
Approval Agency CE, TUV, UL
RPM 14700 RPM
Bearing Type Ball
Fan Type Tubeaxial
Air Flow 68.6 CFM (1.92m3/min)
Noise 61.5 dB(A)
Voltage Range 36V~75VDC
Static Pressure 2.886 in H2O (718.9 Pa)
Compliance
RoHS Status ROHS3 Compliant
