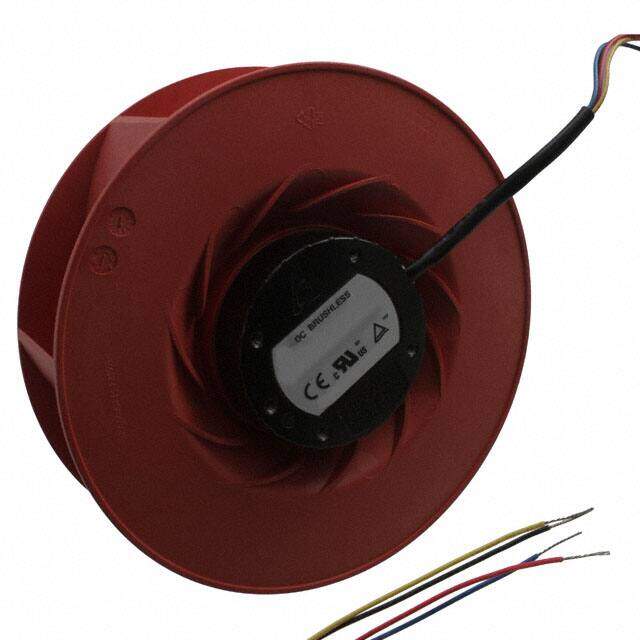

TCA1748AT-EP
RoHS
/
Package /
Category Fans, Thermal Management / DC Brushless Fans (BLDC)
Description
FAN IMP MTRZD 175X69MM 48VDC
PDF
/
Inventory: 8191
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings IP56, Water Resistant
RoHS Status RoHS Compliant
Dimensions
Width 69.00mm
Length 175mm
Height 175mm
Technical
Static Pressure 1.957 in H2O (487.5 Pa)
Voltage Range 36V~60VDC
Noise 70.8 dB(A)
Air Flow 428.0 CFM (11.98m3/min)
Fan Type Motorized Impellers
Bearing Type Ball
RPM 4000 RPM
Life (Hours) 70000 hours
Lifetime @ Temp 70000 Hrs @ 40°C
Approval Agency CE, cUL, TUV
Current Rating 1.6A
Ingress Protection IP56 - Dust Protected, Water Resistant
Max Power Dissipation 76.8W
Current Rating (Amps) 1.6A
Power Rating 76.8W
Voltage - Rated 48VDC
Power (Watts) 76.8W
Min Operating Temperature -13°C
Max Operating Temperature 158°C
Termination 4 Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature GR-487, PWM Control, Speed Sensor (Tach)
Size / Dimension Round - 175mm Dia
Series TCA
Published 2010
Operating Temperature -13~158°F -25°C~70°C
Physical
Material - Blade Plastic
Material - Frame Aluminum
Weight 1.5lbs 680.4g
Housing Material Aluminium
