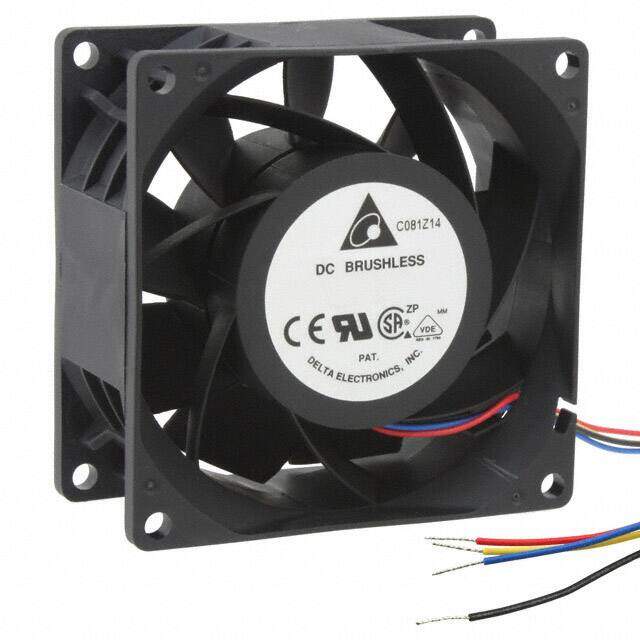

PFM0812HE-01BFY
RoHS
RoHS compliant
RoHS compliantPackage /
Category Fans, Thermal Management / DC Brushless Fans (BLDC)
Description
80X38MM 12V DC FAN W/PWM CONTROL
PDF
/
Buying Options
Total Price: USD $36.98
Unit Price: USD $36.9776
≥1 USD $36.9776
≥10 USD $34.39656
≥100 USD $30.956992
≥500 USD $28.37721
≥1000 USD $26.65733
≥3000 USD $23.217682
Inventory: 1100
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Weight 0.441lb 200.03g
Material - Frame Plastic
Material - Blade Plastic
Technical
Operating Temperature 14~158°F -10°C~70°C
Published 2012
Series PFM - Three-Phase
Size / Dimension Square - 80mm Lx80mm H
Feature PWM Control, Speed Sensor (Tach)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination 4 Wire Leads
Power (Watts) 51.6W
Voltage - Rated 12VDC
Current Rating (Amps) 4.3A
Approval Agency CE, cURus, TUV
Lifetime @ Temp 70000 Hrs @ 40°C
RPM 16300 RPM
Bearing Type Ball
Fan Type Tubeaxial
Air Flow 129.4 CFM (3.62m3/min)
Noise 77.0 dB(A)
Voltage Range 10.8V~12.6VDC
Static Pressure 4.969 in H2O (1237.8 Pa)
Dimensions
Width 38.00mm
Compliance
RoHS Status ROHS3 Compliant
