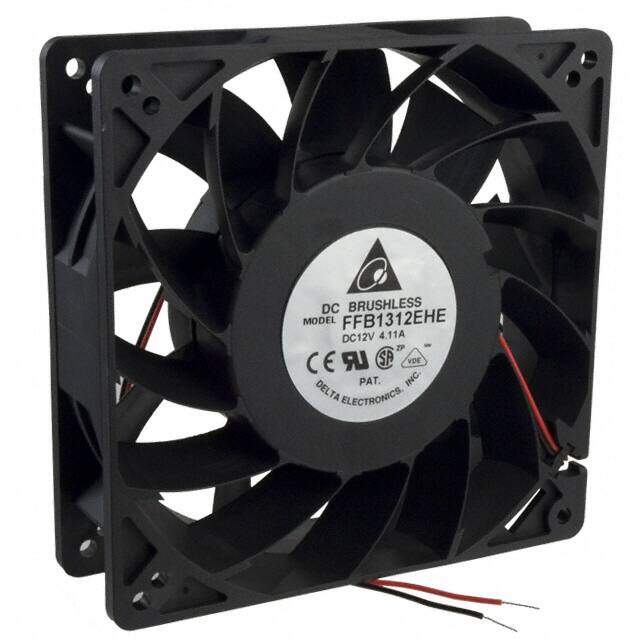

FFB1312EHE
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Fans, Thermal Management / DC Brushless Fans (BLDC)
Description
FAN AXIAL 127X38MM 12VDC WIRE
PDF
/
Inventory: 7949
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Package / Case Axial
Weight 1.102lb 500.0g
Material - Frame Plastic
Technical
Published 2005
Series FFB
Size / Dimension Square - 127mm Lx127mm H
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination 2 Wire Leads
Power (Watts) 32.9W
Power Rating 32.88W
Voltage - Rated DC 12V
Max Power Dissipation 32.9W
Reach Compliance Code unknown
Current Rating 2.74A
Approval Agency CE, CSA, UL, VDE
RPM 3850 RPM
Bearing Type Ball
Fan Type Tubeaxial
Air Flow 200.0 CFM (5.60m3/min)
Noise 59.5 dB(A)
Voltage Range 8.5V~13.2VDC
Static Pressure 0.799 in H2O (199.0 Pa)
Dimensions
Height 127mm
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
