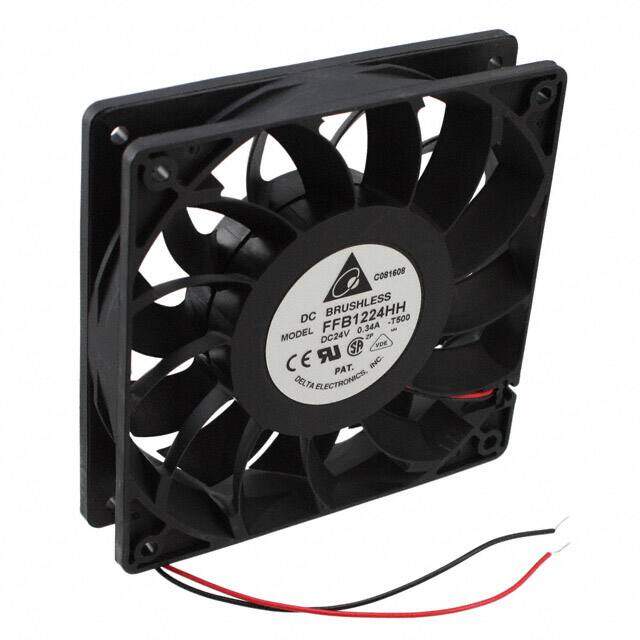

FFB1224HH-T500
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Fans, Thermal Management / DC Brushless Fans (BLDC)
Description
FAN AXIAL 120X25.4MM 24VDC WIRE
PDF
/
Inventory: 2351
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Termination 2 Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension Square - 120mm Lx120mm H
Series FFB
Operating Temperature 14~140°F -10°C~60°C
Static Pressure 0.288 in H2O (71.7 Pa)
Voltage Range 14V~26.4VDC
Noise 49.7 dB(A)
Air Flow 114.7 CFM (3.21m3/min)
Fan Type Tubeaxial
Bearing Type Ball
RPM 3100 RPM
Life (Hours) 70000 hours
Lifetime @ Temp 70000 Hrs @ 40°C
Approval Agency CE, CSA, UL, VDE
Current Rating 280mA
Ingress Protection IP55 - Dust Protected, Water Resistant
Max Power Dissipation 6.72W
Current Rating (Amps) 0.280A
Power Rating 6.72W
Voltage - Rated 24VDC
Physical
Material - Frame Plastic
Weight 0.452lb 205.02g
Package / Case Axial
Supply Chain
Factory Lead Time 19 Weeks
Compliance
Ratings IP55, Water Resistant
RoHS Status ROHS3 Compliant
Dimensions
Height 120mm
