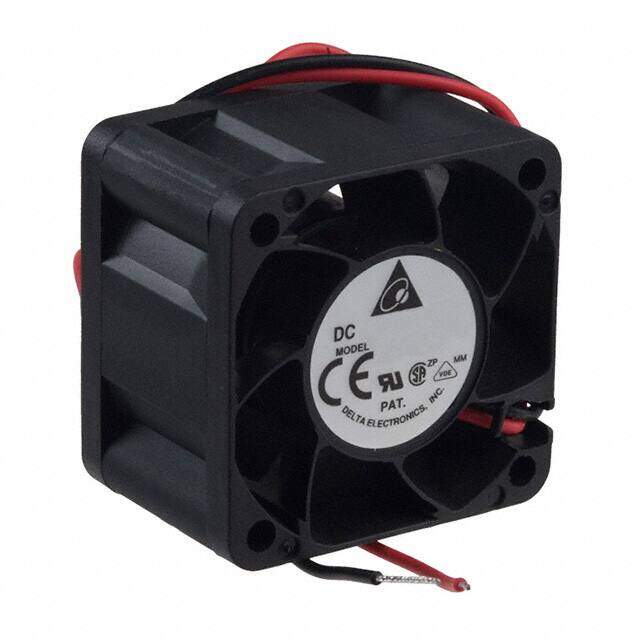

FFB03812VHN

Delta Electronics
RoHS
RoHS RoHS compliant
Package Axial
Category Fans, Thermal Management / DC Brushless Fans (BLDC)
Description DC Fan Ball Bearing 12V 0.65A 7.8W 16000RPM 20.23CFM 58.5dB Flange Mount
PDF
/
Buying Options
Total Price: USD $16.45
Unit Price: USD $16.4472
≥1 USD $16.4472
≥10 USD $15.69744
≥100 USD $14.202144
≥500 USD $13.080848
≥1000 USD $11.735416
≥3000 USD $10.838485
Inventory: 315
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Width 28.00mm
Length 38mm
Height 38mm

Technical

Static Pressure 1.463 in H2O (364.4 Pa)
Voltage Range 7V~13.2VDC
Noise 58.5 dB(A)
Air Flow 20.2 CFM (0.566m3/min)
Fan Type Tubeaxial
Bearing Type Ball
RPM 16000 RPM
Approval Agency CE, CSA, UL, VDE
Current Rating 650mA
Depth 38mm
Max Power Dissipation 7.8W
Current Rating (Amps) 0.650A
Power Rating 7.8W
Voltage - Rated 12VDC
Power (Watts) 7.8W
Termination 2 Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension Square - 38mm Lx38mm H
Series FFB
Published 2015

Physical

Material - Blade Plastic
Material - Frame Plastic
Weight 0.101lb 45.81g
Housing Material Plastic
Package / Case Axial

Supply Chain

Factory Lead Time 19 Weeks
