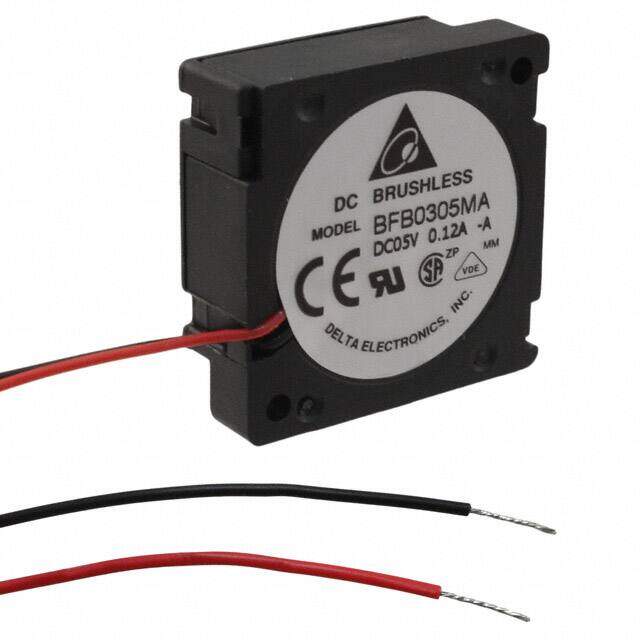

BFB0305MA-A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Fans, Thermal Management / DC Brushless Fans (BLDC)
Description
DC Blower Ball Bearing 5V 0.08A 0.4W 6500RPM 1.24CFM 26dB Flange Mount
PDF
/
Buying Options
Total Price: USD $10.94
Unit Price: USD $10.9384
≥1 USD $10.9384
≥10 USD $10.22384
≥100 USD $9.272384
≥500 USD $8.559232
≥1000 USD $7.48924
≥3000 USD $7.013741
Inventory: 1100
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Mount Flanges
Weight 0.022lb 9.98g
Material - Frame Plastic
Technical
Operating Temperature 14~158°F -10°C~70°C
Published 2005
Series BFB
Size / Dimension Square - 30mm Lx30mm H
Feature Locked Rotor Protection
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination 2 Wire Leads
Voltage - Rated 5VDC
Additional Feature APPROVALS: UL; VDE
Power Rating 400mW
Current Rating (Amps) 0.080A
Max Power Dissipation 400mW
Depth 30mm
Current Rating 80mA
Approval Agency CE, CSA, UL, VDE
Operating Supply Voltage 5V
Lifetime @ Temp 30000 Hrs @ 40°C
Life (Hours) 30000 hours
RPM 6500 RPM
Bearing Type Ball
Fan Type Blower
Air Flow 1.2 CFM (0.034m3/min)
Noise 26.0 dB(A)
Voltage Range 4V~5.5VDC
Static Pressure 0.206 in H2O (51.3 Pa)
Thermal Support Device Type DC FAN
Rated Power 0.4W
Dimensions
Width 10mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
