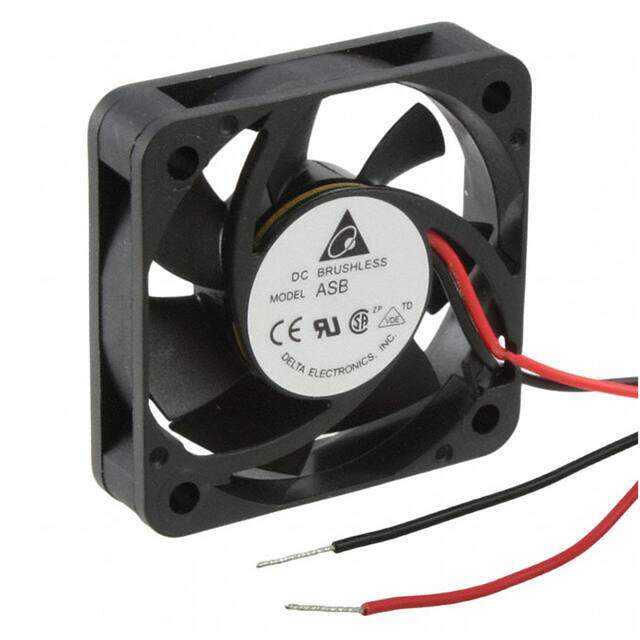

ASB0412HA-A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Fans, Thermal Management / DC Brushless Fans (BLDC)
Description
FAN AXIAL 40X10MM 12VDC WIRE
PDF
/
Inventory: 2388
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Material - Frame Plastic
Material - Blade Plastic
Technical
Operating Temperature 14~158°F -10°C~70°C
Series ASB
Size / Dimension Square - 40mm Lx40mm H
Feature Locked Rotor Protection
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination 2 Wire Leads
Power (Watts) 600mW
Voltage - Rated 12VDC
Current Rating (Amps) 0.050A
Approval Agency CE, CSA, UL, VDE
Lifetime @ Temp 30000 Hrs @ 40°C
RPM 6000 RPM
Bearing Type Sleeve
Fan Type Tubeaxial
Air Flow 6.9 CFM (0.193m3/min)
Noise 26.0 dB(A)
Voltage Range 7V~13.8VDC
Static Pressure 0.140 in H2O (34.9 Pa)
Dimensions
Width 10.00mm
Compliance
RoHS Status ROHS3 Compliant
