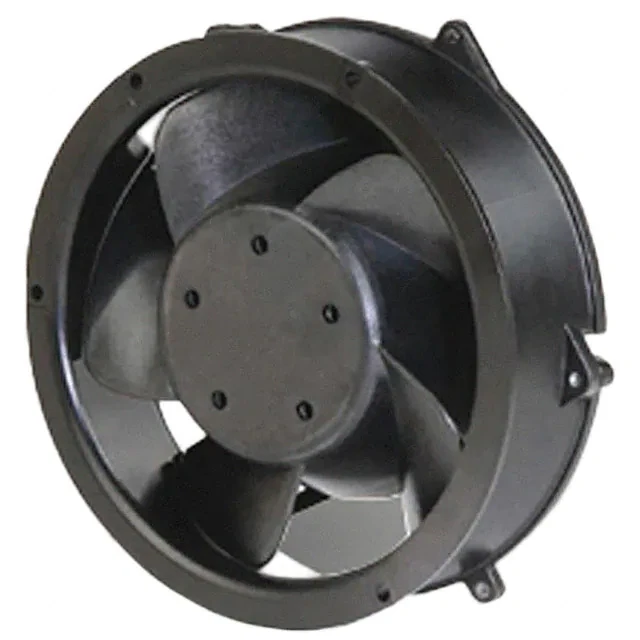

AHB1548EH
RoHS
/
Package Axial
Category Fans, Thermal Management / DC Brushless Fans (BLDC)
Description
FAN AXIAL 172X25.4MM 48VDC WIRE
PDF
/
Inventory: 1682
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Dimensions
Width 25.40mm
Technical
Static Pressure 0.736 in H2O (183.3 Pa)
Voltage Range 32V~80VDC
Noise 61.0 dB(A)
Air Flow 271.1 CFM (7.59m3/min)
Fan Type Tubeaxial
Bearing Type Ball
RPM 4000 RPM
Approval Agency CE, CSA, UL, VDE
Current Rating 520mA
Max Power Dissipation 25W
Current Rating (Amps) 0.520A
Voltage - Rated DC 48V
Power Rating 25W
Voltage - Rated 48VDC
Power (Watts) 25W
Termination 2 Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension Rectangular/Rounded - 172mm Lx150mm H
Series AHB
Published 2010
Physical
Material - Blade Plastic
Material - Frame Aluminum
Weight 0.948lb 430.01g
Package / Case Axial
