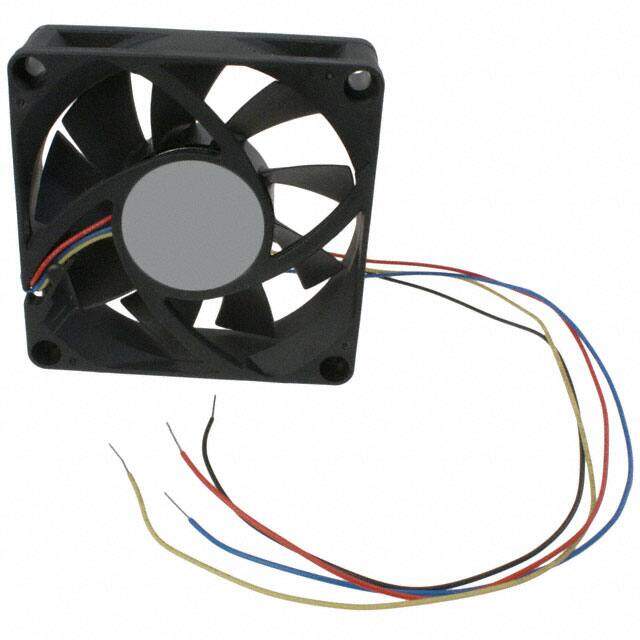

AFC0712DD-TP10
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Fans, Thermal Management / DC Brushless Fans (BLDC)
Description
70X70X20MM 12V DC FAN WITH SPEED SENSOR (TACH) AND PWM SPEED
PDF
/
Buying Options
Total Price: USD $14.53
Unit Price: USD $14.5288
≥1 USD $14.5288
≥10 USD $13.86792
≥100 USD $12.54704
≥500 USD $11.556688
≥1000 USD $10.367958
≥3000 USD $9.575474
Inventory: 1249
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Package / Case Axial
Weight 0.15lb 68.04g
Material - Frame Plastic
Technical
Operating Temperature 14~140°F -10°C~60°C
Published 2008
Series AFC
Size / Dimension Square - 70mm Lx70mm H
Feature PWM Control, Speed Sensor (Tach)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination 4 Wire Leads
Voltage - Rated 12VDC
Power Rating 4.2W
Current Rating (Amps) 0.350A
Max Power Dissipation 4.2W
Depth 70mm
Reach Compliance Code unknown
Current Rating 350mA
Approval Agency CE, TUV, UL
Lifetime @ Temp 70000 Hrs @ 40°C
Life (Hours) 70000 hours
RPM 5000 RPM
Bearing Type Ball
Fan Type Tubeaxial
Air Flow 46.9 CFM (1.31m3/min)
Noise 44.3 dB(A)
Voltage Range 8V~13.2VDC
Static Pressure 0.285 in H2O (71.0 Pa)
Dimensions
Height 70mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free

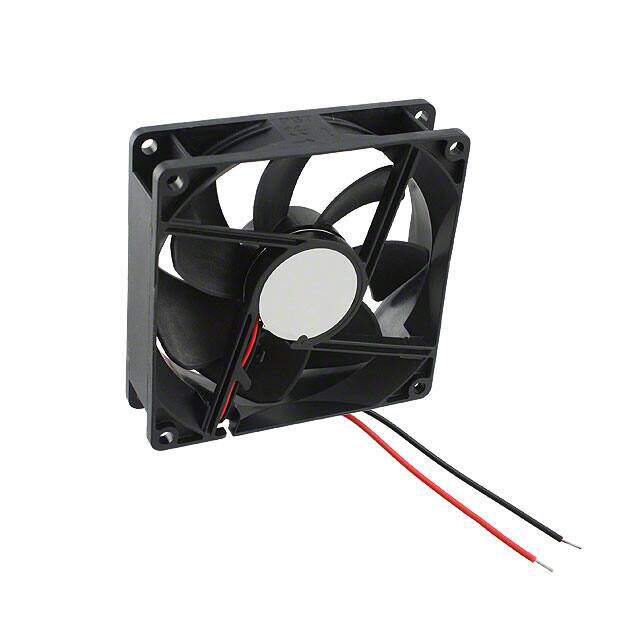

Alternative Model
