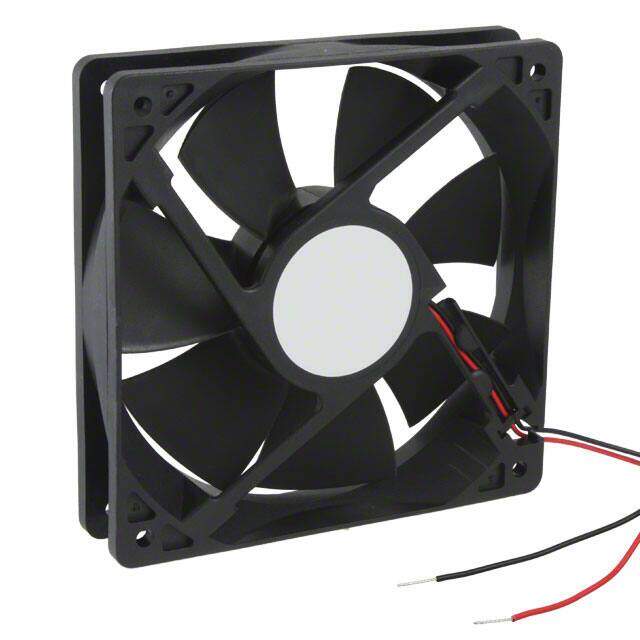

AFB1248VHE image
Favorite
AFB1248VHE image
Favorite

AFB1248VHE

Delta Electronics
RoHS
RoHS RoHS compliant
Package /
Category Fans, Thermal Management / DC Brushless Fans (BLDC)
Description FAN AXIAL 120X120X38MM 48V WIRE
PDF
/
Inventory: 7513
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 120mm
Length 120mm

Technical

Thermal Support Device Type DC FAN
Static Pressure 0.420 in H2O (104.6 Pa)
Voltage Range 28V~56VDC
Noise 48.0 dB(A)
Air Flow 130.0 CFM (3.64m3/min)
Fan Type Tubeaxial
Bearing Type Ball
RPM 3200 RPM
Approval Agency CE, CSA, UL, VDE
Current Rating 180mA
Max Power Dissipation 8.64W
Current Rating (Amps) 0.180A
Voltage - Rated 48VDC
Termination 2 Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension Square - 120mm Lx120mm H
Series AFB
Published 2004

Physical

Material - Frame Plastic
Weight 0.564lb 255.83g

Supply Chain

Factory Lead Time 19 Weeks
