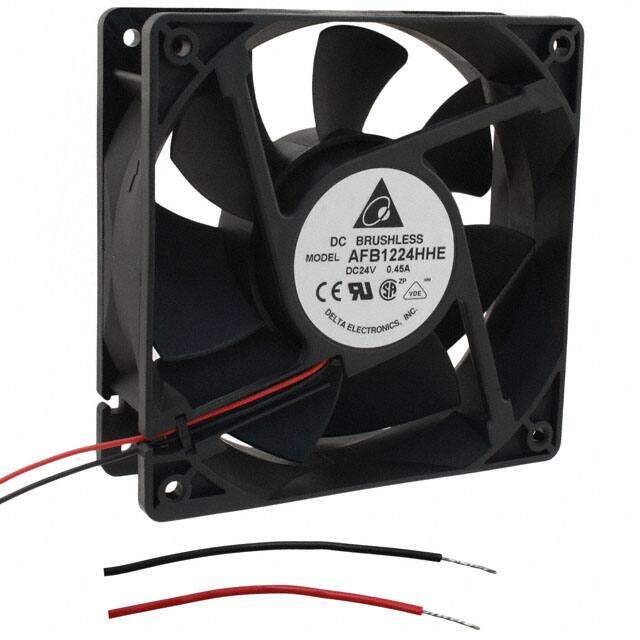

AFB1224HHE
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Fans, Thermal Management / DC Brushless Fans (BLDC)
Description
DC Fan Axial Ball Bearing 24V 7V to 27.6V 120.07CFM 44dB (120 X 120 X 38mm)
PDF
/
Buying Options
Total Price: USD $18.91
Unit Price: USD $18.9112
≥1 USD $18.9112
≥10 USD $18.0488
≥100 USD $16.32987
≥500 USD $15.04067
≥1000 USD $13.493656
≥3000 USD $12.462305
Inventory: 1176
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 38mm
Height 120mm
Technical
Thermal Support Device Type DC FAN
Static Pressure 0.354 in H2O (88.2 Pa)
Voltage Range 7V~27.6VDC
Noise 44.0 dB(A)
Air Flow 120.1 CFM (3.36m3/min)
Fan Type Tubeaxial
Bearing Type Ball
RPM 2900 RPM
Speed 3500 rpm
Life (Hours) 70000 hours
Lifetime @ Temp 70000 Hrs @ 40°C
Approval Agency CE, CSA, UL, VDE
Current Rating 300mA
Depth 120mm
Max Power Dissipation 7.2W
Current Rating (Amps) 0.300A
Power Rating 6.48W
Voltage - Rated 24VDC
Termination 2 Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension Square - 120mm Lx120mm H
Series AFB
Published 2009
Operating Temperature 14~140°F -10°C~60°C
Physical
Material - Frame Plastic
Weight 0.564lb 255.83g
Package / Case Axial
Supply Chain
Factory Lead Time 19 Weeks
