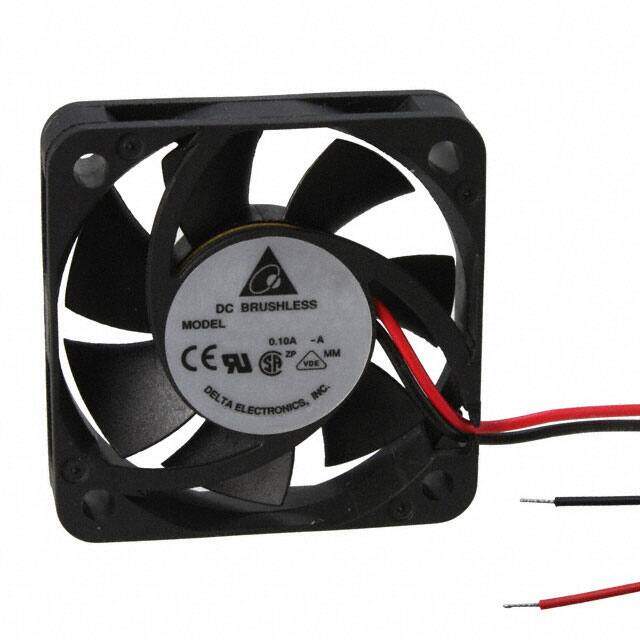

AFB0405MA-A
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Fans, Thermal Management / DC Brushless Fans (BLDC)
Description
FAN AXIAL 40X10MM BALL 5VDC WIRE
PDF
/
Buying Options
Total Price: USD $9.87
Unit Price: USD $9.8736
≥1 USD $9.8736
≥10 USD $9.22944
≥100 USD $8.371264
≥500 USD $7.72728
≥1000 USD $6.761304
≥3000 USD $6.332022
Inventory: 646
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Package / Case Axial
Weight 0.031lb 14.06g
Material - Frame Plastic
Technical
Operating Temperature 14~158°F -10°C~70°C
Published 2008
Series AFB
Size / Dimension Square - 40mm Lx40mm H
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination 2 Wire Leads
Voltage - Rated 5VDC
Additional Feature APPROVALS: UL; VDE
Power Rating 250mW
Current Rating (Amps) 0.050A
Max Power Dissipation 250mW
Depth 40mm
Reach Compliance Code unknown
Current Rating 50mA
Approval Agency CE, CSA, UL, VDE
Lifetime @ Temp 70000 Hrs @ 40°C
Life (Hours) 70000 hours
RPM 5000 RPM
Bearing Type Ball
Fan Type Tubeaxial
Air Flow 5.7 CFM (0.160m3/min)
Noise 21.5 dB(A)
Voltage Range 4.5V~5.5VDC
Static Pressure 0.104 in H2O (26.0 Pa)
Thermal Support Device Type DC FAN
Rated Power 0.25W
Dimensions
Height 40mm
Width 10mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
