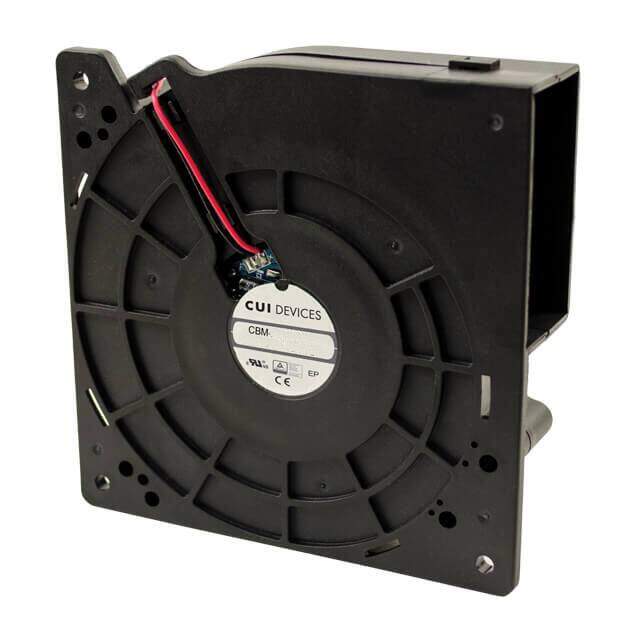

CBM-A232B-125
RoHS
RoHS compliant
RoHS compliantPackage /
Category Fans, Thermal Management / DC Brushless Fans (BLDC)
Description
FAN BLOWER 120X32MM 12VDC WIRE
PDF
/
Inventory: 7962
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 32.00mm
Technical
Static Pressure 0.890 in H2O (221.7 Pa)
Voltage Range 6V~13.8VDC
Noise 53.8 dB(A)
Air Flow 35.9 CFM (1.01m3/min)
Fan Type Blower
Bearing Type Ball
RPM 2500 RPM
Lifetime @ Temp 70000 Hrs @ 40°C
Approval Agency CE, cURus, TUV
Current Rating (Amps) 0.820A
Voltage - Rated 12VDC
Power (Watts) 9.8W
Termination 2 Wire Leads
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Auto Restart
Size / Dimension Square/Rounded - 120mm Lx120mm H
Series CBM-120B
Operating Temperature 14~158°F -10°C~70°C
Physical
Material - Blade Polybutylene Terephthalate (PBT)
Material - Frame Polybutylene Terephthalate (PBT)
Weight 0.553lb 250.84g
Supply Chain
Factory Lead Time 22 Weeks
