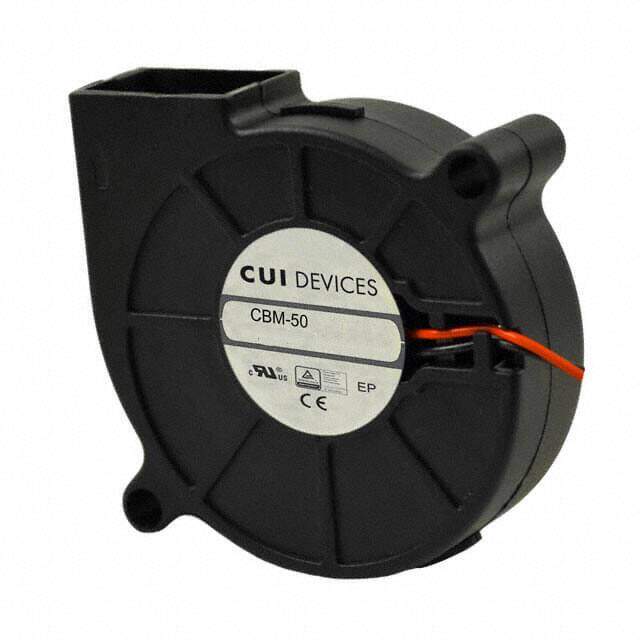

CBM-5015V-160
RoHS
RoHS compliant
RoHS compliantPackage /
Category Fans, Thermal Management / DC Brushless Fans (BLDC)
Description
FAN BLOWER 51.7X15MM 12VDC WIRE
PDF
/
Inventory: 3986
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 22 Weeks
Physical
Weight 0.067lb 30.39g
Material - Frame Polybutylene Terephthalate (PBT)
Material - Blade Polybutylene Terephthalate (PBT)
Technical
Operating Temperature 14~158°F -10°C~70°C
Series CBM-50V
Size / Dimension Square/Rounded - 51.7mm Lx51.6mm H
Feature Auto Restart
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination 2 Wire Leads
Power (Watts) 2.36W
Voltage - Rated 12VDC
Current Rating (Amps) 0.196A
Approval Agency CE, cURus, TUV
Lifetime @ Temp 70000 Hrs @ 40°C
RPM 6000 RPM
Bearing Type omniCOOL? Magnetic Sleeve
Fan Type Blower
Air Flow 5.4 CFM (0.151m3/min)
Noise 42.2 dB(A)
Voltage Range 4.5V~13.8VDC
Static Pressure 0.970 in H2O (241.6 Pa)
Dimensions
Width 15.00mm
Compliance
RoHS Status RoHS Compliant
