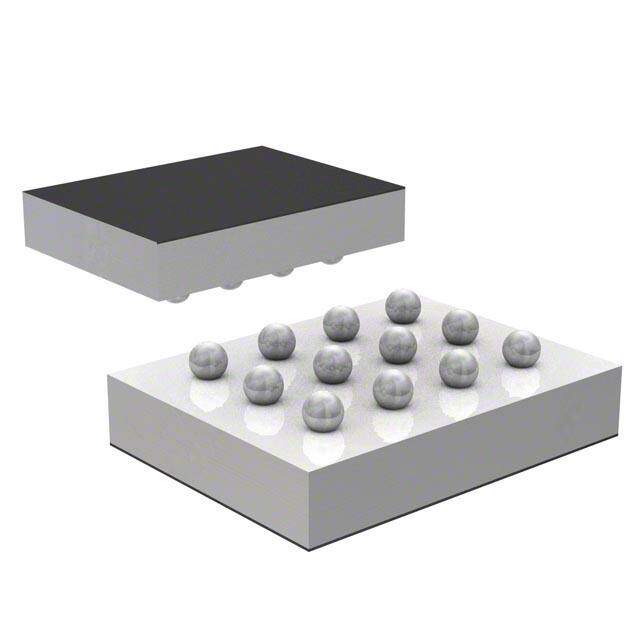

STMPE812ABJR
RoHS
RoHS compliant
RoHS compliantPackage 12-WFBGA, WLCSP
Category Integrated Circuits (ICs) / Data Acquisition - Touch Screen Controllers
Description
STMPE812 I2C Lead Free 12-WFBGA WLCSP touch screen controller 1.8/3.3V 3.6V 100muA 2.17mm
PDF
/
Buying Options
Total Price: USD $13.83
Unit Price: USD $13.82535
≥1 USD $13.82535
≥10 USD $11.34395
≥100 USD $10.9896
≥500 USD $10.6343
≥1000 USD $10.27995
Inventory: 1649
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 1.67mm
Length 2.17mm
Height Seated (Max) 0.715mm
Technical
Voltage Reference Internal
Touchscreen 4 Wire Resistive
Resolution (Bits) 12 b
Consumer IC Type CONSUMER CIRCUIT
Data Rate 400 kbps
Nominal Supply Current 100μA
Interface I2C
Supply Voltage-Min (Vsup) 1.65V
Power Supplies 1.8/3.3V
Supply Voltage-Max (Vsup) 3.6V
Pin Count 12
Base Part Number STMPE812
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 0.5mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Voltage - Supply 1.65V~3.6V
Subcategory Other Consumer ICs
HTS Code 8542.39.00.01
Terminal Finish Matte Tin (Sn) - annealed
Number of Terminations 12
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Series S-Touch?
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 12
Package / Case 12-WFBGA, WLCSP
Mounting Type Surface Mount
Mount Surface Mount
