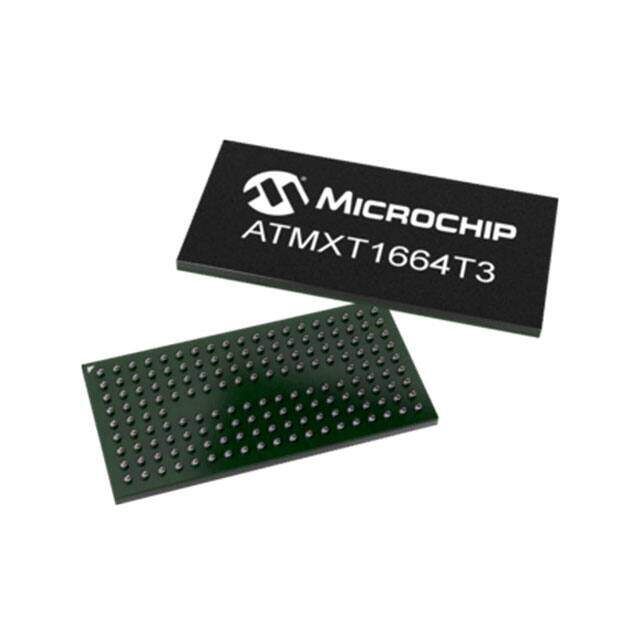

ATMXT1664T3-C2UR035
RoHS
RoHS compliant
RoHS compliantPackage 162-UFBGA
Category Integrated Circuits (ICs) / Data Acquisition - Touch Screen Controllers
Description
I2C SPI USB 162-UFBGA maXTouch? R-PBGA-B162 touch screen controller 3.3V 11.28mA 10mm -40C~85C
PDF
/
Buying Options
Total Price: USD $14.87
Unit Price: USD $14.87415
≥1 USD $14.87415
≥10 USD $12.20465
≥100 USD $11.82275
≥500 USD $11.4418
≥1000 USD $11.06085
Inventory: 1483
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mounting Type Surface Mount
Package / Case 162-UFBGA
Surface Mount YES
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series maXTouch?
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 162
Technology CMOS
Voltage - Supply 3.135V~3.465V
Terminal Position BOTTOM
Terminal Form BALL
Number of Functions 1
Supply Voltage 3.3V
Terminal Pitch 0.5mm
JESD-30 Code R-PBGA-B162
Supply Voltage-Max (Vsup) 3.47V
Supply Voltage-Min (Vsup) 3.14V
Interface I2C, SPI, USB
Analog IC - Other Type ANALOG CIRCUIT
Current - Supply 11.28mA
Resolution (Bits) 12 b
Touchscreen 2 Wire Capacitive
Voltage Reference Internal
Dimensions
Height Seated (Max) 0.6mm
Length 10mm
Width 5mm
Compliance
RoHS Status ROHS3 Compliant
