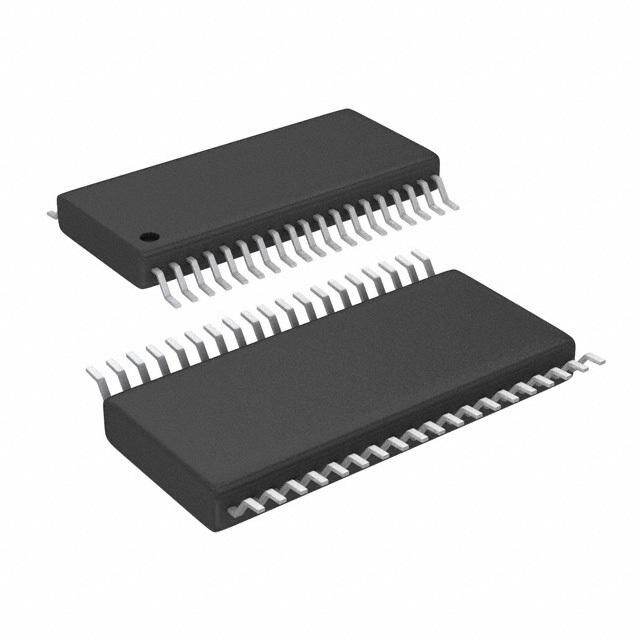

DAC8805QDBTG4 image
Favorite
DAC8805QDBTG4 image
Favorite

DAC8805QDBTG4

Texas Instruments
RoHS
/
Package TSSOP
Category Integrated Circuits (ICs) / Data Acquisition - Digital to Analog Converters (DAC)
Description TSSOP 3A001.A.5.B Parallel Gold digital to analog converter 10V 500ns 2Msps 1LSB
PDF
/
Inventory: 7542
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Width 4.4mm
Length 9.7mm

Technical

Analog Output Voltage-Min -10V
Differential Nonlinearity 1 LSB
Analog Output Voltage-Max 10V
Conversion Rate 2 Msps
Number of Converters 2
Input Bit Code BINARY
Integral Nonlinearity (INL) 1 LSB
Linearity Error-Max (EL) 0.0061%
Settling Time 500 ns
Sampling Rate 2 Msps
Resolution 1.75 B
Supply Type Single
Converter Type D/A CONVERTER
Number of Bits 14
Nominal Supply Current 3μA
Min Supply Voltage 2.7V
Max Supply Voltage 5.5V
Interface Parallel
Temperature Grade AUTOMOTIVE
Power Supplies 3/5V
Polarity Unipolar
Pin Count 38
Terminal Pitch 0.5mm
Supply Voltage 5V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Subcategory Other Converters
Min Operating Temperature -40°C
Max Operating Temperature 125°C
ECCN Code 3A001.A.5.B
Number of Terminations 38
Moisture Sensitivity Level (MSL) 2
JESD-609 Code e4
Packaging Rail/Tube

Physical

Number of Pins 38
Surface Mount YES
Package / Case TSSOP
Contact Plating Gold
