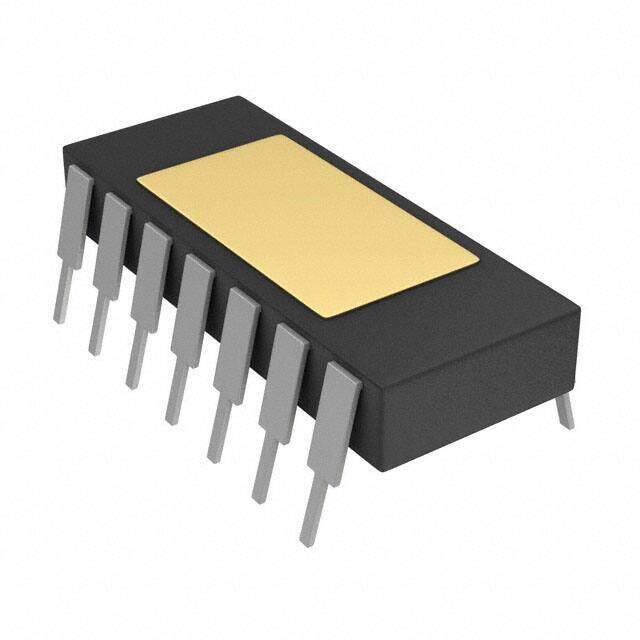

DAC811AH
RoHS
RoHS compliant
RoHS compliantPackage 28-CDIP (0.600, 15.24mm)
Category Integrated Circuits (ICs) / Data Acquisition - Digital to Analog Converters (DAC)
Description
28-CDIP (0.600 15.24mm) Voltage - Buffered R-2R DAC811 digital to analog converter 15V 4mus 250ksps 0.75LSB
PDF
/
Buying Options
Total Price: USD $70.54
Unit Price: USD $70.5432
≥1 USD $70.5432
≥10 USD $68.33825
≥100 USD $66.13425
≥500 USD $63.9293
≥1000 USD $57.31635
Inventory: 1183
Minimum: 1
-
+
Technical Details
Supply Chain
Lifecycle Status OBSOLETE (Last Updated: 1 week ago)
Physical
Contact Plating Gold
Mounting Type Through Hole
Package / Case 28-CDIP (0.600, 15.24mm)
Surface Mount NO
Number of Pins 28
Technical
Operating Temperature -25°C~85°C
Packaging Tube
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 28
ECCN Code EAR99
Subcategory Other Converters
Max Power Dissipation 800mW
Number of Functions 1
Supply Voltage 12V
Terminal Pitch 2.54mm
Base Part Number DAC811
Pin Count 28
Output Type Voltage - Buffered
Polarity Bipolar, Unipolar
Number of Bits 12
Supply Current-Max 35mA
Architecture R-2R
Converter Type D/A CONVERTER
Supply Type Analog, Digital, Dual
Reference Type Internal
Data Interface Parallel
Differential Output No
Resolution 1.5 B
Sampling Rate 250 ksps
Voltage - Supply, Analog ±11.4V~16.5V
Voltage - Supply, Digital 5V
Settling Time 4μs
Max Dual Supply Voltage 16.5V
Power Consumption 625mW
Linearity Error-Max (EL) 0.0244%
Integral Nonlinearity (INL) 0.5 LSB
Min Dual Supply Voltage 11.4V
Input Bit Code BINARY, OFFSET BINARY, 2'S COMPLEMENT BINARY
Dual Supply Voltage 15V
Number of Converters 1
Conversion Rate 250 ksps
INL/DNL (LSB) ±0.25, ±0.5
Negative Supply Voltage-Nom -12V
Differential Nonlinearity 0.75 LSB
Dimensions
Height 3.56mm
Length 35.94mm
Width 10.1mm
Thickness 3.18mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
