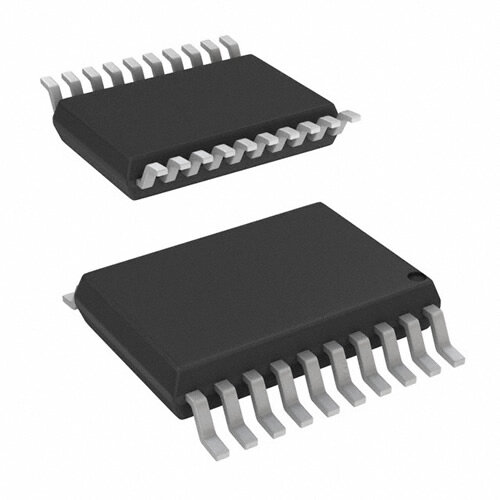

DAC7615EG4
RoHS
/
Package SSOP
Category Integrated Circuits (ICs) / Data Acquisition - Digital to Analog Converters (DAC)
Description
SSOP Voltage e4 SPI digital to analog converter 5V 10mus 89ksps 20mW
PDF
/
Buying Options
Total Price: USD $199.08
Unit Price: USD $199.075835
≥1 USD $199.075835
≥10 USD $192.529817
≥25 USD $191.191477
≥50 USD $189.862444
≥100 USD $185.957337
≥500 USD $172.662337
Inventory: 1180
Minimum: 1
-
+
Technical Details
Physical
Contact Plating Gold
Package / Case SSOP
Surface Mount YES
Number of Pins 20
Weight 174.689761mg
Technical
JESD-609 Code e4
Moisture Sensitivity Level (MSL) 3
Number of Terminations 20
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Subcategory Other Converters
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 0.65mm
Pin Count 20
Output Type Voltage
Operating Supply Voltage 5V
Polarity Bipolar, Unipolar
Temperature Grade INDUSTRIAL
Interface SPI
Max Supply Voltage 5.25V
Min Supply Voltage 4.75V
Power Dissipation-Max 20mW
Nominal Supply Current -1.6mA
Number of Bits 12
Converter Type D/A CONVERTER
Supply Type Single
Resolution 1.5 B
Sampling Rate 89 ksps
Settling Time 10 μs
Max Dual Supply Voltage 5.25V
Power Consumption 15mW
Integral Nonlinearity (INL) 2 LSB
Min Dual Supply Voltage 4.75V
Input Bit Code BINARY
Dual Supply Voltage 5V
Number of Converters 4
Conversion Rate 89 ksps
Signal to Noise Ratio (SNR) 12 dB
Negative Supply Voltage-Nom -5V
Input Format SERIAL
Differential Nonlinearity 1 LSB
Dimensions
Height 1.95mm
Length 7.2mm
Width 5.3mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
