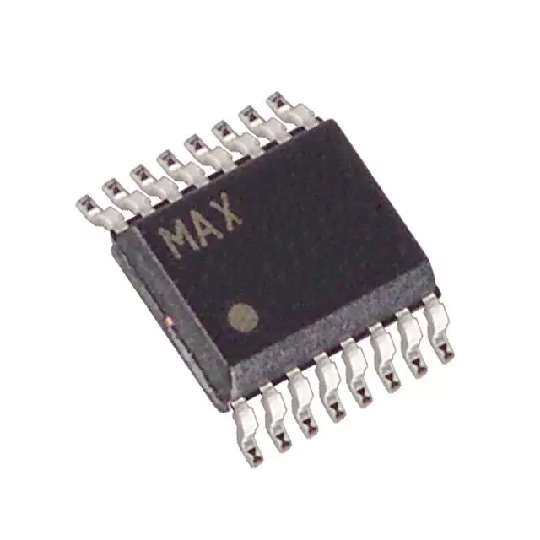

MAX5151BCEE+T
RoHS
/
Package QSOP
Category Integrated Circuits (ICs) / Data Acquisition - Digital to Analog Converters (DAC)
Description
QSOP Voltage 3A001.A.5.B SPI Serial digital to analog converter 3.6V 16mus 2LSB 4.9mm
PDF
/
Inventory: 9637
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 3.9mm
Length 4.9mm
Height Seated (Max) 1.75mm
Technical
Number of Converters 2
Input Bit Code BINARY
Integral Nonlinearity (INL) 2 LSB
Settling Time 16 μs
Resolution 1.625 B
Supply Type Single
Converter Type D/A CONVERTER
Supply Current-Max 0.6mA
Number of Bits 13
Min Supply Voltage 2.7V
Max Supply Voltage 3.6V
Interface SPI, Serial
Temperature Grade COMMERCIAL
Power Supplies 3/3.3V
Output Type Voltage
Qualification Status Not Qualified
Pin Count 16
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 0.635mm
Supply Voltage 3V
Number of Functions 2
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology CMOS
Subcategory Other Converters
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Matte Tin (Sn)
ECCN Code 3A001.A.5.B
Number of Terminations 16
Moisture Sensitivity Level (MSL) 1
Pbfree Code yes
JESD-609 Code e3
Physical
Number of Pins 16
Package / Case QSOP
Mount Surface Mount
