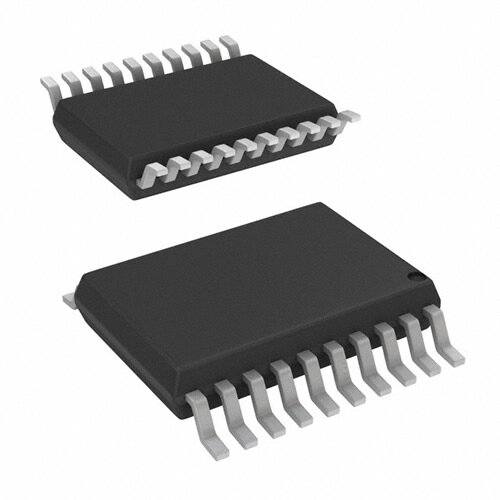

TLC2543CDBRG4
RoHS
/
Package SSOP
Category Integrated Circuits (ICs) / Data Acquisition - Analog to Digital Converters (ADC)
Description
IC ADC 12BIT 11CH SW-CAP 20-SSOP
PDF
/
Buying Options
Total Price: USD $10.8
Unit Price: USD $10.80055
≥1 USD $10.80055
≥10 USD $8.86255
≥100 USD $8.58515
≥500 USD $8.3087
≥1000 USD $8.0313
Inventory: 1229
Minimum: 1
-
+
Technical Details
Physical
Package / Case SSOP
Surface Mount YES
Number of Pins 20
Technical
Packaging Tape and Reel
JESD-609 Code e4
Pbfree Code yes
Moisture Sensitivity Level (MSL) 1
Number of Terminations 20
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Subcategory Analog to Digital Converters
Technology CMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 0.65mm
Pin Count 20
Polarity Unipolar
Power Supplies 5V
Temperature Grade COMMERCIAL
Interface SPI, Serial
Max Supply Voltage 5.5V
Min Supply Voltage 4.5V
Power Dissipation-Max 5mW
Nominal Supply Current 1mA
Number of Bits 12
Converter Type ADC, SUCCESSIVE APPROXIMATION
Supply Type Single
Resolution 1.5 B
Sampling Rate 66 ksps
Number of Analog In Channels 11
Output Bit Code BINARY, 2'S COMPLEMENT BINARY
Power Consumption 5mW
Linearity Error-Max (EL) 0.0244%
Integral Nonlinearity (INL) 1 LSB
Sample and Hold / Track and Hold SAMPLE
Number of Converters 1
Conversion Rate 66 ksps
Max Supply Voltage (DC) 5.5V
Min Supply Voltage (DC) 4.5V
Number of Analog Inputs 11
Dimensions
Height Seated (Max) 2mm
Length 7.2mm
Width 5.3mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Contains Lead
