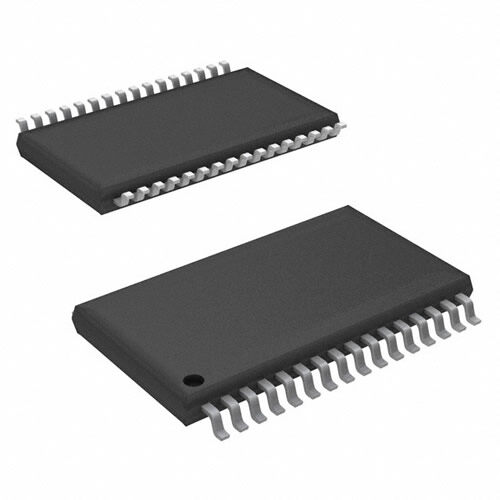

THS10064CDARG4
RoHS
/
Package TSSOP
Category Integrated Circuits (ICs) / Data Acquisition - Analog to Digital Converters (ADC)
Description
IC 10BIT 6MSPS HS ADC 32-TSSOP
PDF
/
Inventory: 6600
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Radiation Hardening No
Technical
Spurious-free dynamic range (SFDR) 65 dB
Min Supply Voltage (DC) 3V
Max Supply Voltage (DC) 5.25V
Signal to Noise Ratio (SNR) 61 dB
Conversion Rate 6 Msps
Number of Converters 1
Sample and Hold / Track and Hold SAMPLE
Integral Nonlinearity (INL) 1 LSB
Linearity Error-Max (EL) 0.0977%
Power Consumption 186mW
Output Bit Code BINARY, 2'S COMPLEMENT BINARY
Number of Analog In Channels 4
Sampling Rate 6 Msps
Resolution 1.25 B
Supply Type Analog, Digital
Converter Type ADC, PROPRIETARY METHOD
Number of Inputs 4
Number of Bits 10
Power Dissipation 216mW
Nominal Supply Current 36mA
Power Dissipation-Max 216mW
Min Supply Voltage 4.75V
Max Supply Voltage 5.25V
Interface Parallel
Temperature Grade COMMERCIAL
Power Supplies 3/55V
Polarity Unipolar
Pin Count 32
Terminal Pitch 0.65mm
Supply Voltage 5V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology CMOS
Subcategory Analog to Digital Converters
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 32
Moisture Sensitivity Level (MSL) 2
Pbfree Code yes
JESD-609 Code e4
Packaging Tape and Reel
Physical
Number of Pins 32
Surface Mount YES
Package / Case TSSOP
