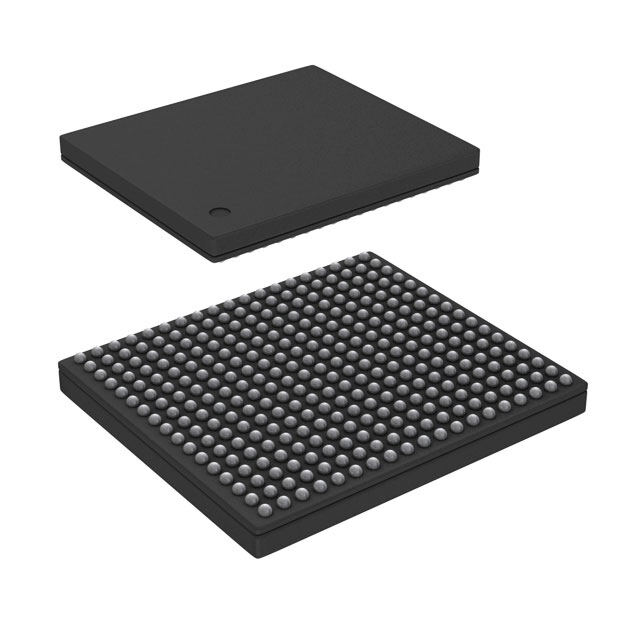

DDC2256AZZF

Texas Instruments
RoHS
RoHS RoHS compliant
Package 323-LFBGA
Category Integrated Circuits (ICs) / Data Acquisition - Analog to Digital Converters (ADC)
Description 323-LFBGA DDC2256 LVDS ACTIVE (Last Updated: 5days ago) analog digital converter 1.17mm 94mA 17ksps 561mW
PDF
/
Buying Options
Total Price: USD $342.14
Unit Price: USD $342.1352
≥1 USD $342.1352
≥10 USD $331.84888
≥100 USD $329.276288
Inventory: 232
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Thickness 1.17mm
Width 14mm
Length 16mm
Height 1.66mm

Technical

Max Junction Temperature (Tj) 70°C
Analog Input Voltage-Min -2.5V
Output Format PARALLEL
Analog Input Voltage-Max 2.5V
Ratio - S/H:ADC 4:1
Number of Converters 16
Number of A/D Converters 64
Power Consumption 561mW
Output Bit Code BINARY
Sampling Rate (Per Second) 17k
Number of Analog In Channels 256
Voltage - Supply, Digital 1.8V
Voltage - Supply, Analog ±2.5V 1.8V
Sampling Rate 17 ksps
Data Interface LVDS - Serial, Serial
Reference Type External
Converter Type ADC, DELTA-SIGMA
Number of Inputs 256
Architecture Sigma-Delta
Input Type Single Ended
Number of Bits 24
Nominal Supply Current 94mA
Min Supply Voltage -2.65V
Max Supply Voltage 2.65V
Interface LVDS
Configuration DSI-ADC
Base Part Number DDC2256
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.8mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
ECCN Code EAR99
Number of Terminations 323
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Feature Simultaneous Sampling
JESD-609 Code e1
Packaging Tray
Operating Temperature 0°C~70°C

Physical

Number of Pins 323
Surface Mount YES
Package / Case 323-LFBGA
Mounting Type Surface Mount

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 12 Weeks
