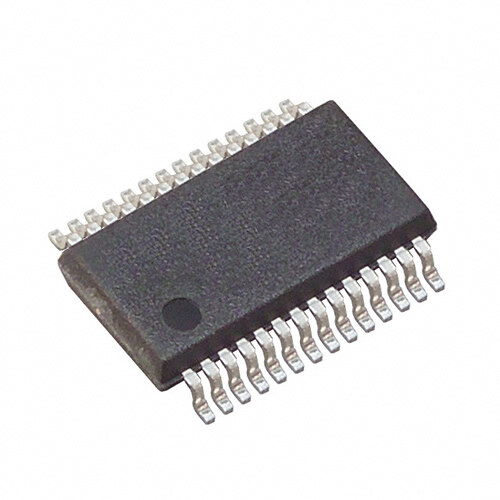

ADS900EG4
RoHS
/
Package SSOP
Category Integrated Circuits (ICs) / Data Acquisition - Analog to Digital Converters (ADC)
Description
IC 3V 10BIT 20MHZ ADC 28-SSOP
PDF
/
Buying Options
Total Price: USD $10.67
Unit Price: USD $10.67325
≥1 USD $10.67325
≥10 USD $8.75805
≥100 USD $8.48445
≥500 USD $8.21085
≥1000 USD $7.93725
Inventory: 1230
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 5.3mm
Height Seated (Max) 2mm
Technical
Spurious-free dynamic range (SFDR) 53 dB
Min Supply Voltage (DC) 2.7V
Max Supply Voltage (DC) 3.7V
Signal to Noise Ratio (SNR) 49 dB
Conversion Rate 20 Msps
Sample and Hold / Track and Hold TRACK
Integral Nonlinearity (INL) 3.5 LSB
Power Consumption 54mW
Output Bit Code OFFSET BINARY
Number of Analog In Channels 1
Sampling Rate 20 Msps
Resolution 1.25 B
Supply Type Single
Converter Type ADC, PROPRIETARY METHOD
Number of Bits 10
Power Dissipation 66mW
Nominal Supply Current 18mA
Power Dissipation-Max 52mW
Min Supply Voltage 2.7V
Max Supply Voltage 3.7V
Interface Parallel
Temperature Grade INDUSTRIAL
Power Supplies 3V
Polarity Unipolar
Number of Elements 1
Pin Count 28
Terminal Pitch 0.65mm
Supply Voltage 3V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology CMOS
Subcategory Analog to Digital Converters
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 28
Moisture Sensitivity Level (MSL) 2
Pbfree Code yes
JESD-609 Code e4
Packaging Rail/Tube
Physical
Number of Pins 28
Surface Mount YES
Package / Case SSOP
