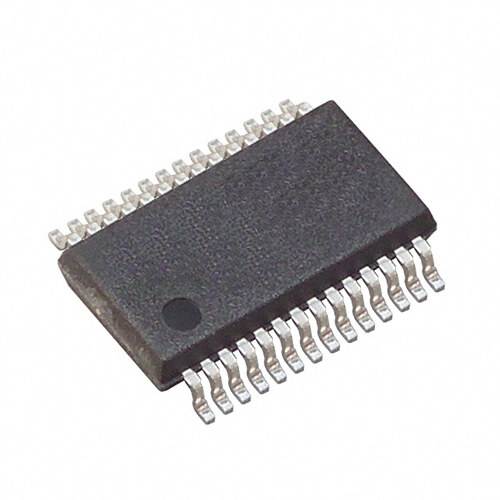

ADS8505IDBG4
RoHS
/
Package SSOP
Category Integrated Circuits (ICs) / Data Acquisition - Analog to Digital Converters (ADC)
Description
IC ADC 16BIT 250KSPS 28-SSOP
PDF
/
Inventory: 6827
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Package / Case SSOP
Surface Mount YES
Number of Pins 28
Technical
JESD-609 Code e4
Pbfree Code yes
Moisture Sensitivity Level (MSL) 2
Number of Terminations 28
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Subcategory Analog to Digital Converters
Technology CMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 0.65mm
Pin Count 28
Operating Supply Voltage 5V
Polarity Bipolar
Power Supplies 5V
Temperature Grade INDUSTRIAL
Interface Parallel
Power Dissipation-Max 100mW
Nominal Supply Current 12mA
Number of Bits 16
Number of Inputs 1
Converter Type ADC, SUCCESSIVE APPROXIMATION
Supply Type Analog, Digital
Resolution 2 B
Sampling Rate 250 ksps
Number of Analog In Channels 1
Output Bit Code 2'S COMPLEMENT BINARY
Power Consumption 70mW
Integral Nonlinearity (INL) 4 LSB
Sample and Hold / Track and Hold SAMPLE
Conversion Rate 250 ksps
Signal to Noise Ratio (SNR) 88 dB
Max Supply Voltage (DC) 5.25V
Min Supply Voltage (DC) 4.75V
Spurious-free dynamic range (SFDR) 98 dB
Dimensions
Height Seated (Max) 2mm
Width 5.3mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Contains Lead
