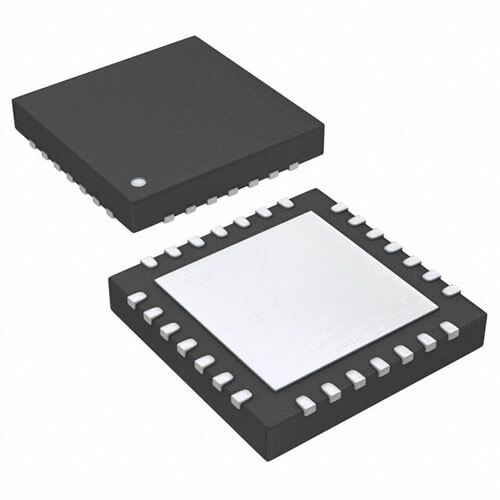

ADS8372IRHPTG4
RoHS
/
Package VQFN
Category Integrated Circuits (ICs) / Data Acquisition - Analog to Digital Converters (ADC)
Description
IC ADC 16BIT 600KSPS 28-VQFN
PDF
/
Inventory: 3168
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Package / Case VQFN
Surface Mount YES
Number of Pins 28
Technical
Packaging Tape and Reel
JESD-609 Code e4
Pbfree Code yes
Moisture Sensitivity Level (MSL) 2
Number of Terminations 28
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Subcategory Analog to Digital Converters
Technology CMOS
Terminal Position QUAD
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 0.65mm
Pin Count 28
Operating Supply Voltage 5V
Number of Elements 1
Polarity Bipolar
Temperature Grade INDUSTRIAL
Interface Serial
Max Supply Voltage 5.25V
Min Supply Voltage 4.75V
Power Dissipation-Max 110mW
Nominal Supply Current 22mA
Number of Bits 16
Converter Type ADC, SUCCESSIVE APPROXIMATION
Supply Type Analog, Digital
Resolution 2 B
Sampling Rate 600 ksps
Number of Analog In Channels 1
Output Bit Code 2'S COMPLEMENT BINARY
Power Consumption 110mW
Linearity Error-Max (EL) 0.0023%
Integral Nonlinearity (INL) 1.5 LSB
Sample and Hold / Track and Hold SAMPLE
Conversion Rate 600 ksps
Analog Input Voltage-Max 4.2V
Signal to Noise Ratio (SNR) 93.5 dB
Max Supply Voltage (DC) 5.25V
Min Supply Voltage (DC) 2.7V
Analog Input Voltage-Min -4.2V
Spurious-free dynamic range (SFDR) 120 dB
Dimensions
Length 6mm
Width 6mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Contains Lead
