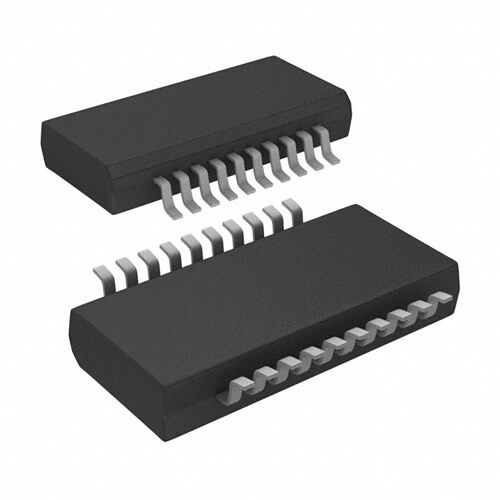

ADS8345EE4
RoHS
/
Package SSOP
Category Integrated Circuits (ICs) / Data Acquisition - Analog to Digital Converters (ADC)
Description
IC ADC 16BIT SER 100K 20QSOP
PDF
/
Inventory: 5820
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 3.9mm
Technical
Spurious-free dynamic range (SFDR) 95 dB
Min Supply Voltage (DC) 2.7V
Max Supply Voltage (DC) 5.25V
Signal to Noise Ratio (SNR) 81 dB
Conversion Rate 100 ksps
Number of Converters 1
Sample and Hold / Track and Hold SAMPLE
Integral Nonlinearity (INL) 8 LSB
Power Consumption 3.6mW
Output Bit Code 2'S COMPLEMENT BINARY
Number of Analog In Channels 8
Sampling Rate 100 ksps
Resolution 2 B
Supply Type Single
Converter Type ADC, SUCCESSIVE APPROXIMATION
Number of Inputs 8
Number of Bits 16
Nominal Supply Current 1.5mA
Power Dissipation-Max 10mW
Interface SPI, Serial
Temperature Grade INDUSTRIAL
Polarity Bipolar
Operating Supply Voltage 5V
Pin Count 20
Terminal Pitch 0.635mm
Supply Voltage 5V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology CMOS
Subcategory Analog to Digital Converters
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 20
Moisture Sensitivity Level (MSL) 2
Pbfree Code yes
JESD-609 Code e4
Physical
Number of Pins 20
Surface Mount YES
Package / Case SSOP
