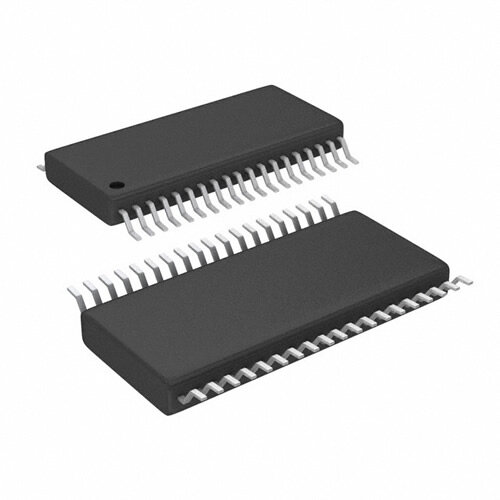

ADS7953SDBTRG4
RoHS
/
Package TSSOP
Category Integrated Circuits (ICs) / Data Acquisition - Analog to Digital Converters (ADC)
Description
Unipolar GULL WING DUAL CMOS Analog to Digital Converter 0.0366% 125C 5.02V 11.5mW
PDF
/
Buying Options
Total Price: USD $8.73
Unit Price: USD $8.7267
≥1 USD $8.7267
≥10 USD $7.1611
≥100 USD $6.9369
≥500 USD $6.71365
≥1000 USD $6.48945
Inventory: 1126
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case TSSOP
Number of Pins 38
Technical
Packaging Tape and Reel
JESD-609 Code e4
Pbfree Code yes
Moisture Sensitivity Level (MSL) 2
Number of Terminations 38
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Subcategory Analog to Digital Converters
Technology CMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 3.3V
Terminal Pitch 0.5mm
Pin Count 38
Polarity Unipolar
Temperature Grade AUTOMOTIVE
Interface SPI, Serial
Max Supply Voltage 5.25V
Min Supply Voltage 2.7V
Number of Bits 12
Converter Type ADC, SUCCESSIVE APPROXIMATION
Supply Type Analog, Digital
Resolution 1.5 B
Sampling Rate 1 Msps
Number of Analog In Channels 16
Output Bit Code BINARY
Power Consumption 11.5mW
Linearity Error-Max (EL) 0.0366%
Integral Nonlinearity (INL) 1.5 LSB
Sample and Hold / Track and Hold SAMPLE
Number of Converters 1
Conversion Rate 1 Msps
Analog Input Voltage-Max 5.02V
Signal to Noise Ratio (SNR) 71.7 dB
Number of Analog Inputs 16
Dimensions
Length 9.7mm
Width 4.4mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Contains Lead
