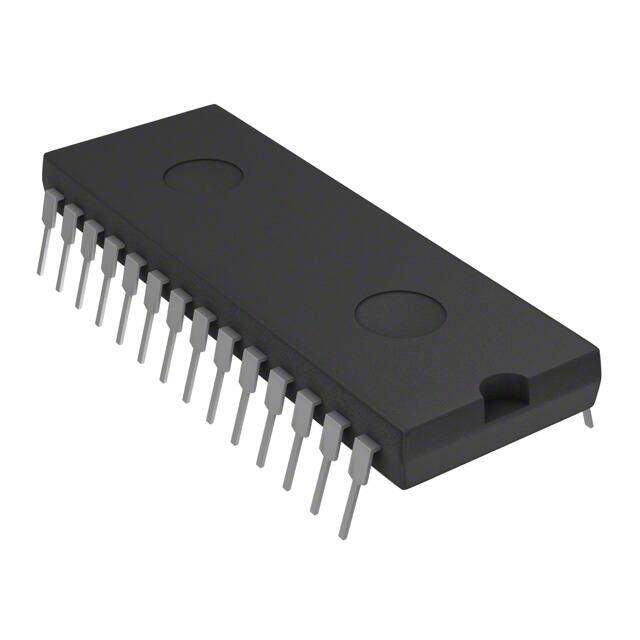

ADS7832BP
RoHS
/
Package 28-DIP (0.600, 15.24mm)
Category Integrated Circuits (ICs) / Data Acquisition - Analog to Digital Converters (ADC)
Description
28-DIP (0.600 15.24mm) ADS7832 Parallel Selectable Address analog digital converter 6.35mm 117ksps 14mW 8.5mus
PDF
/
Buying Options
Total Price: USD $87.91
Unit Price: USD $87.9111
≥1 USD $87.9111
≥10 USD $85.07535
≥100 USD $82.2396
≥500 USD $73.7314
Inventory: 254
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 28-DIP (0.600, 15.24mm)
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Feature Selectable Address
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 28
ECCN Code EAR99
Subcategory Analog to Digital Converters
Max Power Dissipation 7.5mW
Technology CMOS
Terminal Position DUAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 3.3V
Reach Compliance Code not_compliant
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number ADS7832
Pin Count 28
JESD-30 Code R-PDIP-T28
Qualification Status Not Qualified
Operating Supply Voltage 5V
Polarity Unipolar
Configuration MUX-S/H-ADC
Interface Parallel
Max Supply Voltage 5.5V
Min Supply Voltage 4.5V
Power Dissipation 14mW
Number of Bits 12
Input Type Single Ended
Architecture SAR
Number of Inputs 4
Converter Type ADC, SUCCESSIVE APPROXIMATION
Supply Type Analog, Digital, Single
Reference Type External
Data Interface SPI
Resolution 1.5 B
Sampling Rate 117 ksps
Voltage - Supply, Analog 3.3V 5V
Voltage - Supply, Digital 3.3V 5V
Number of Analog In Channels 4
Sampling Rate (Per Second) 117k
Output Bit Code BINARY
Integral Nonlinearity (INL) 0.75 LSB
Sample and Hold / Track and Hold SAMPLE
Number of A/D Converters 1
Ratio - S/H:ADC 1:1
Analog Input Voltage-Max 3.3V
Signal to Noise Ratio (SNR) 71 dB
Differential Nonlinearity 0.75 LSB
