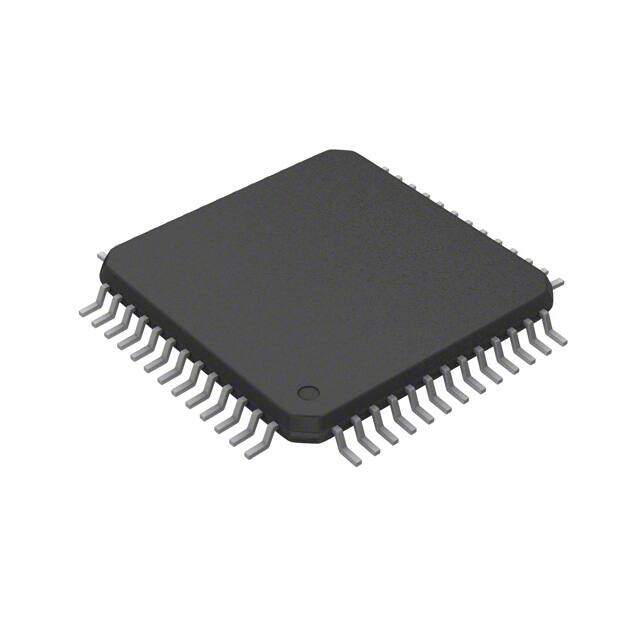

ADS5423IPGP
RoHS
RoHS compliant
RoHS compliantPackage 52-TQFP Exposed Pad
Category Integrated Circuits (ICs) / Data Acquisition - Analog to Digital Converters (ADC)
Description
52-TQFP Exposed Pad ADS5423 LVDS Parallel ACTIVE (Last Updated: 5days ago) analog digital converter 1mm 80Msps 1.85W 6Weeks
PDF
/
Buying Options
Total Price: USD $77.81
Unit Price: USD $77.8069
≥1 USD $77.8069
≥10 USD $75.37585
≥100 USD $72.94385
≥500 USD $70.5128
≥1000 USD $63.21775
Inventory: 1150
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 52-TQFP Exposed Pad
Number of Pins 52
Technical
Operating Temperature -40°C~85°C
Packaging Tray
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 52
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Subcategory Analog to Digital Converters
Max Power Dissipation 2.2W
Technology BIPOLAR
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number ADS5423
Pin Count 52
Qualification Status Not Qualified
Operating Supply Voltage 5V
Configuration S/H-ADC
Interface LVDS, Parallel
Max Supply Voltage 5.25V
Min Supply Voltage 4.75V
Power Dissipation 1.85W
Number of Bits 14
Input Type Differential
Architecture Pipelined
Converter Type ADC, PROPRIETARY METHOD
Supply Type Analog, Digital
Reference Type Internal
Data Interface Parallel
Resolution 1.75 B
Sampling Rate 80 Msps
Voltage - Supply, Analog 5V
Number of Analog In Channels 1
Sampling Rate (Per Second) 80M
Output Bit Code 2'S COMPLEMENT BINARY
Power Consumption 1.85W
Integral Nonlinearity (INL) 1.5 LSB
Sample and Hold / Track and Hold TRACK
Number of Converters 1
Ratio - S/H:ADC 1:1
Analog Input Voltage-Max 2.2V
Analog Input Voltage-Min -2.2V
Dimensions
Height 1.2mm
Length 10mm
Width 10mm
Thickness 1mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
