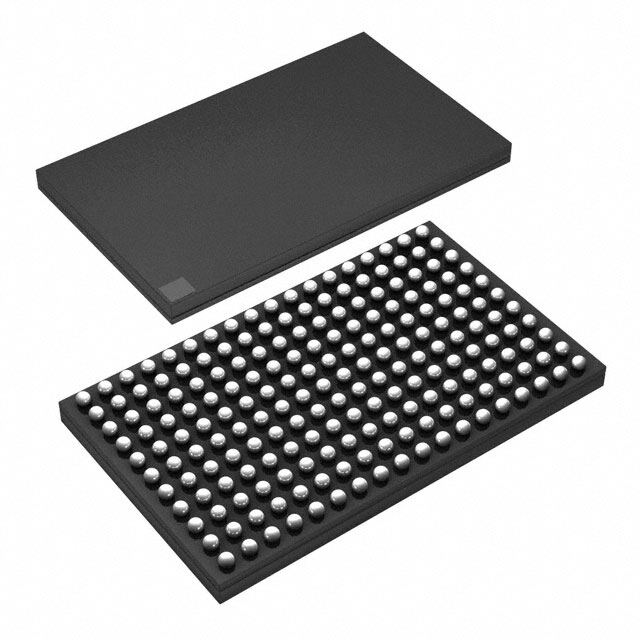

ADS52J90ZZE image
Favorite
ADS52J90ZZE image
Favorite

ADS52J90ZZE

Texas Instruments
RoHS
RoHS RoHS compliant
Package 198-LFBGA
Category Integrated Circuits (ICs) / Data Acquisition - Analog to Digital Converters (ADC)
Description 198-LFBGA ADS52J90 LVDS Serial ACTIVE (Last Updated: 6days ago) analog digital converter 910mum 100Msps 656mW 0.015mus
PDF
/
Buying Options
Total Price: USD $146.61
Unit Price: USD $146.608
≥1 USD $146.608
≥10 USD $140.41016
≥100 USD $137.313088
Inventory: 102
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Thickness 910μm
Width 15mm
Length 9mm
Height Seated (Max) 1.4mm

Technical

Number of Analog Inputs 8
Conversion Time-Max 0.015μs
Analog Input Voltage-Min -2V
Differential Nonlinearity 2 LSB
Analog Input Voltage-Max 2V
Number of A/D Converters 16
Integral Nonlinearity (INL) 3 LSB
Power Consumption 656mW
Output Bit Code 2'S COMPLEMENT BINARY
Sampling Rate (Per Second) 100M
Number of Analog In Channels 16
Voltage - Supply, Digital 1.15V~1.25V 1.7V~1.9V
Voltage - Supply, Analog 1.7V~1.9V
Sampling Rate 100 Msps
Data Interface LVDS - Serial
Reference Type External, Internal
Supply Type Analog, Digital
Converter Type ADC, PROPRIETARY METHOD
Number of Inputs 8, 16, 32
Architecture Pipelined
Input Type Differential
Number of Bits 14
Power Dissipation 656mW
Min Supply Voltage 1.7V
Max Supply Voltage 1.9V
Interface LVDS, Serial
Configuration MUX-ADC
Operating Supply Voltage 1.8V
Pin Count 198
Base Part Number ADS52J90
Supply Voltage 1.8V
Number of Functions 1
Terminal Form BALL
Terminal Position BOTTOM
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
ECCN Code 3A991C3
Number of Terminations 198
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Feature Simultaneous Sampling
JESD-609 Code e1
Packaging Tray
Operating Temperature -40°C~85°C

Physical

Number of Pins 198
Package / Case 198-LFBGA
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Copper, Silver, Tin

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Factory Lead Time 6 Weeks
