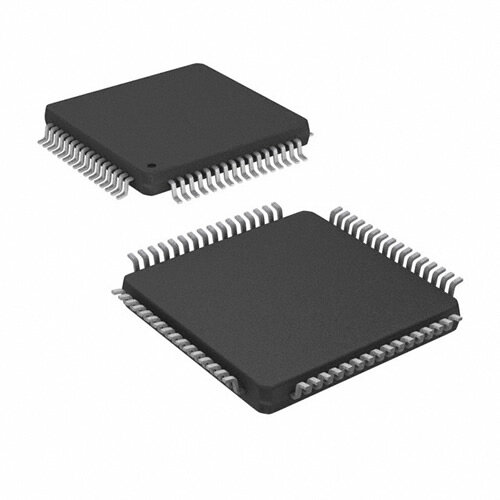

ADS5231IPAGG4
RoHS
/
Package TQFP
Category Integrated Circuits (ICs) / Data Acquisition - Analog to Digital Converters (ADC)
Description
GULL WING QUAD CMOS Single Analog to Digital Converter 0.061% 85C 3.6V 285mW
PDF
/
Buying Options
Total Price: USD $18.98
Unit Price: USD $18.9816
≥1 USD $18.9816
Inventory: 123
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case TQFP
Number of Pins 64
Technical
JESD-609 Code e4
Pbfree Code yes
Moisture Sensitivity Level (MSL) 4
Number of Terminations 64
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Subcategory Analog to Digital Converters
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 3.3V
Terminal Pitch 0.5mm
Pin Count 64
Operating Supply Voltage 3.6V
Power Supplies 3.3V
Temperature Grade INDUSTRIAL
Interface Parallel, Serial
Power Dissipation-Max 271mW
Number of Bits 12
Converter Type ADC, PROPRIETARY METHOD
Supply Type Single
Resolution 1.5 B
Sampling Rate 40 Msps
Number of Analog In Channels 2
Power Consumption 285mW
Linearity Error-Max (EL) 0.061%
Sample and Hold / Track and Hold SAMPLE
Conversion Rate 40 Msps
Output Format PARALLEL, WORD
Signal to Noise Ratio (SNR) 70.7 dB
Number of Analog Inputs 2
Dimensions
Length 10mm
Width 10mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Contains Lead
